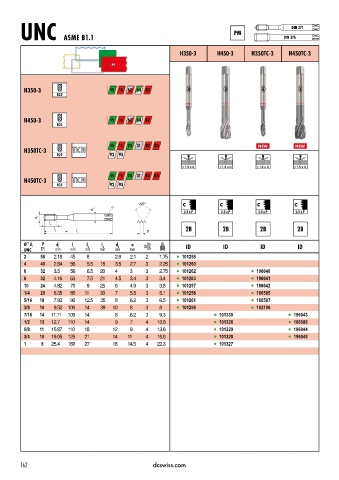

Page 165 - DC_SWISS(Catalogue_TM_ES-EN)

DIN 371
PM
UNC ASME B1.1 DIN 376

H350 3 H450 3 H350TC-3 H450TC-3
H

H350-3 15 16 62 82
R25

H450-3 15 16 62 82
R25

NEW
NEW
H350TC 3 TiCN 15 16 24 31 82 83 NEW NEW
R25 92 93
< 1.5 x D < 1.5 x D < 1.5 x D < 1.5 x D

H450TC 3 TiCN 15 16 24 31 82 83
R25 92 93

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
2 56 2.18 45 8 2.8 2.1 2 1.75 l 101258
4 40 2.84 56 5.5 18 3.5 2.7 3 2.25 l 101260
6 32 3.5 56 6.5 20 4 3 3 2.75 l 101262 l 196040
8 32 4.16 63 7.5 21 4.5 3.4 3 3.4 l 101263 l 196041
10 24 4.82 70 9 25 6 4.9 3 3.8 l 101257 l 196042
1/4 20 6.35 80 11 30 7 5.5 3 5.1 l 101256 l 160585
5/16 18 7.93 90 12.5 35 8 6.2 3 6.5 l 101261 l 160587
3/8 16 9.52 100 14 39 10 8 3 8 l 101259 l 162106
7/16 14 11.11 100 14 8 6.2 3 9.3 l 101330 l 196043
1/2 13 12.7 110 14 9 7 4 10.8 l 101326 l 160586
5/8 11 15.87 110 18 12 9 4 13.6 l 101329 l 196044
3/4 10 19.05 125 21 14 11 4 16.6 l 101328 l 196045
1 8 25.4 160 27 18 14.5 4 22.3 l 101327
