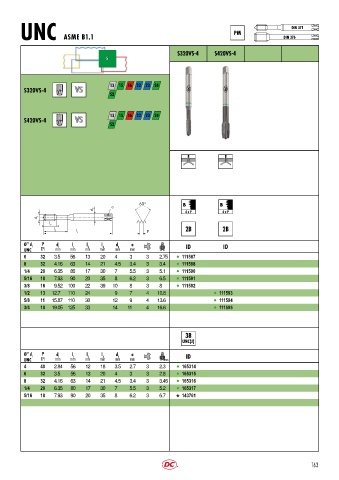

Page 166 - DC_SWISS(Catalogue_TM_ES-EN)

DIN 371
PM
UNC ASME B1.1 DIN 376

S320VS 4 S420VS 4
S

S320VS-4 VS 13 15 16 22 23 24
52

S420VS-4 VS 13 15 16 22 23 24
52

B B
a
d 2
4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
UNC TPI mm mm mm mm mm mm
6 32 3.5 56 13 20 4 3 3 2.75 l 111587
8 32 4.16 63 14 21 4.5 3.4 3 3.4 l 111588
1/4 20 6.35 80 17 30 7 5.5 3 5.1 l 111590
5/16 18 7.93 90 20 35 8 6.2 3 6.5 l 111591
3/8 16 9.52 100 22 39 10 8 3 8 l 111592
1/2 13 12.7 110 24 9 7 4 10.8 l 111593
5/8 11 15.87 110 30 12 9 4 13.6 l 111594
3/4 10 19.05 125 33 14 11 4 16.6 l 111595

Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID
UNC TPI mm mm mm mm mm mm UNJC
4 40 2.84 56 12 18 3.5 2.7 3 2.3 l 165314
6 32 3.5 56 13 20 4 3 3 2.8 l 165315
8 32 4.16 63 14 21 4.5 3.4 3 3.45 l 165316
1/4 20 6.35 80 17 30 7 5.5 3 5.2 l 165317
5/16 18 7.93 90 20 35 8 6.2 3 6.7 143761
