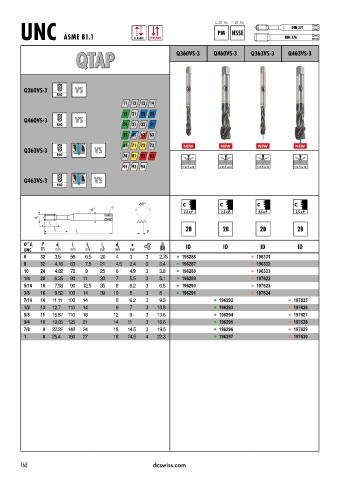

Page 171 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 16 > Ø 16
DIN 371
PM HSSE
UNC ASME B1.1 CLASSIC SYNCHRO DIN 376
QTAP Q360VS-3 Q460VS-3 Q363VS-3 Q463VS-3

Q360VS-3 VS
R40
11 12 13 14
15 21 22 23
Q460VS-3 VS
R40 24 31 32 51
52 61 62 63

NEW
NEW
NEW
NEW
Q363VS-3 VS 71 72 73 NEW NEW NEW NEW
R40 74 81 82 83
91 92 94 < 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D
Q463VS-3 VS
R40

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
6 32 3.5 56 6.5 20 4 3 3 2.75 l 196286 l 196331
8 32 4.16 63 7.5 21 4.5 3.4 3 3.4 l 196287 l 196332
10 24 4.82 70 9 25 6 4.9 3 3.8 l 196288 l 196333
1/4 20 6.35 80 11 30 7 5.5 3 5.1 l 196289 l 197622
5/16 18 7.93 90 12.5 35 8 6.2 3 6.5 l 196290 l 197623
3/8 16 9.52 100 14 39 10 8 3 8 l 196291 l 197624
7/16 14 11.11 100 14 8 6.2 3 9.3 l 196292 l 197625
1/2 13 12.7 110 14 9 7 3 10.8 l 196293 l 197626
5/8 11 15.87 110 18 12 9 3 13.6 l 196294 l 197627
3/4 10 19.05 125 21 14 11 3 16.6 l 196295 l 197628
7/8 9 22.22 140 24 18 14.5 3 19.5 l 196296 l 197629
1 8 25.4 160 27 18 14.5 4 22.3 l 196297 l 197630
