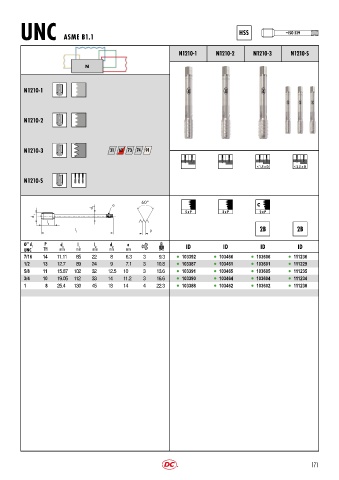

Page 174 - DC_SWISS(Catalogue_TM_ES-EN)

HSS ~ ISO 529
UNC ASME B1.1

N1210 1 N1210 2 N1210 3 N1210 S

N

N1210-1

N1210-2

N1210-3 31 62 73 74 91

< 1.5 x D < 2.5 x D

N1210-S

a C
d 2
5 x P 3 x P 2 x P
d 1
l 2
l
1 P
Ø’’ d 1 P d 1 l 1 l 2 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm
7/16 14 11.11 85 22 8 6.3 3 9.3 l 103392 l 103466 l 103606 l 111236
1/2 13 12.7 89 24 9 7.1 3 10.8 l 103387 l 103461 l 103601 l 111229
5/8 11 15.87 102 32 12.5 10 3 13.6 l 103391 l 103465 l 103605 l 111235
3/4 10 19.05 112 33 14 11.2 3 16.6 l 103390 l 103464 l 103604 l 111234
1 8 25.4 130 45 18 14 4 22.3 l 103388 l 103462 l 103602 l 111230

171
