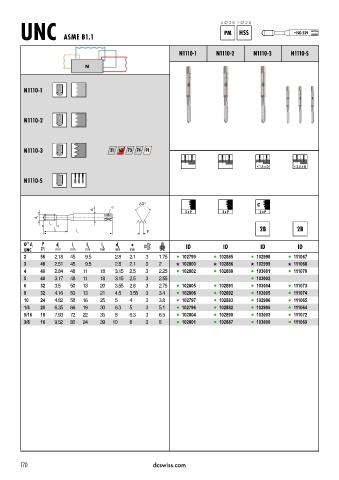

Page 173 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSS ~ ISO 529
UNC ASME B1.1

N1110 1 N1110 2 N1110 3 N1110 S

N

N1110-1

N1110-2

N1110-3 31 62 73 74 91

< 1.5 x D < 2.5 x D

N1110-S

C
a
d 2
5 x P 3 x P 2 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
2 56 2.18 45 9.5 2.8 2.1 3 1.75 l 102799 l 102885 l 102998 l 111067
3 48 2.51 45 9.5 2.8 2.1 3 2 102800 102886 102999 111068
4 40 2.84 48 11 18 3.15 2.5 3 2.25 l 102802 l 102888 l 103001 l 111070
5 40 3.17 48 11 18 3.15 2.5 3 2.55 l 103002
6 32 3.5 50 13 20 3.55 2.8 3 2.75 l 102805 l 102891 l 103004 l 111073
8 32 4.16 53 13 21 4.5 3.55 3 3.4 l 102806 l 102892 l 103005 l 111074
10 24 4.82 58 16 25 5 4 3 3.8 l 102797 l 102883 l 102996 l 111065
1/4 20 6.35 66 19 30 6.3 5 3 5.1 l 102796 l 102882 l 102995 l 111064
5/16 18 7.93 72 22 35 8 6.3 3 6.5 l 102804 l 102890 l 103003 l 111072
3/8 16 9.52 80 24 39 10 8 3 8 l 102801 l 102887 l 103000 l 111069

170 dcswiss.com
