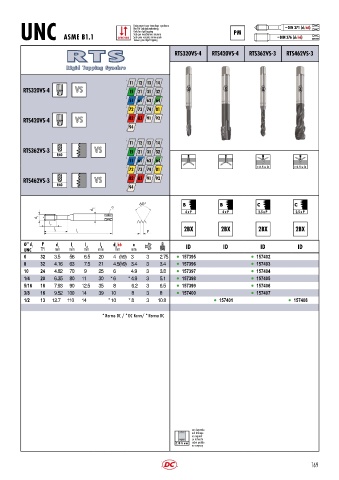

Page 172 - DC_SWISS(Catalogue_TM_ES-EN)

Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung ~ DIN 371 (d2 h6)
Only for rigid tapping PM
UNC ASME B1.1 SYNCHRO Solo per maschiatura sincrona ~ DIN 376 (d2 h6)
Solo para roscado sincronizado
Только для ridgid tapping
RT S RTS320VS 4 RTS420VS 4 RTS362VS 3 RTS462VS 3

Rigid Tapping Sy nc hro

11 12 13 14
RTS320VS-4 VS 15 21 31 32
51 61 63
72 73 74 81

RTS420VS-4 VS 82 83 91 92
94

11 12 13 14
RTS362VS-3 VS 15 21 31 32
R40
51 61 63
72 73 74 81 < 2.5 x D < 2.5 x D

RTS462VS-3 VS 82 83 91 92
R40 94

B B C C
a
d 2
4 x P 4 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d h6 a ID ID ID ID
2
UNC TPI mm mm mm mm mm mm
6 32 3.5 56 6.5 20 4 (h9) 3 3 2.75 l 157395 l 157402
8 32 4.16 63 7.5 21 4.5(h9) 3.4 3 3.4 l 157396 l 157403
10 24 4.82 70 9 25 6 4.9 3 3.8 l 157397 l 157404
1/4 20 6.35 80 11 30 * 6 * 4.9 3 5.1 l 157398 l 157405
5/16 18 7.93 90 12.5 35 8 6.2 3 6.5 l 157399 l 157406
3/8 16 9.52 100 14 39 10 8 3 8 l 157400 l 157407
1/2 13 12.7 110 14 * 10 * 8 3 10.8 l 157401 l 157408

* Norme DC / * DC Norm/ * Norma DC

sur demande
auf Anfrage
on request
su richiesta
> Ø 6 mm sobre pedido
по запросу
