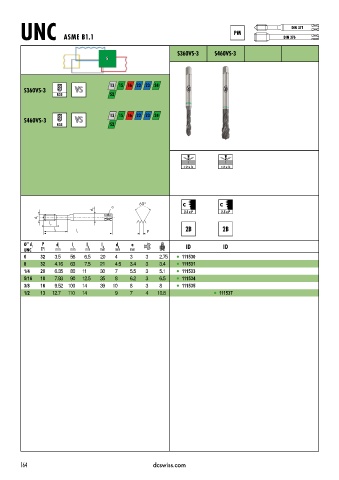

Page 167 - DC_SWISS(Catalogue_TM_ES-EN)

DIN 371
PM
UNC ASME B1.1 DIN 376

S360VS 3 S460VS 3
S

S360VS-3 VS 13 15 16 22 23 24
R35 52

S460VS-3 VS 13 15 16 22 23 24
R35 52

< 2 x D < 2 x D

C C
a
d 2
2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID
UNC TPI mm mm mm mm mm mm
6 32 3.5 56 6.5 20 4 3 3 2.75 l 111530
8 32 4.16 63 7.5 21 4.5 3.4 3 3.4 l 111531
1/4 20 6.35 80 11 30 7 5.5 3 5.1 l 111533
5/16 18 7.93 90 12.5 35 8 6.2 3 6.5 l 111534
3/8 16 9.52 100 14 39 10 8 3 8 l 111535
1/2 13 12.7 110 14 9 7 4 10.8 l 111537

164 dcswiss.com
