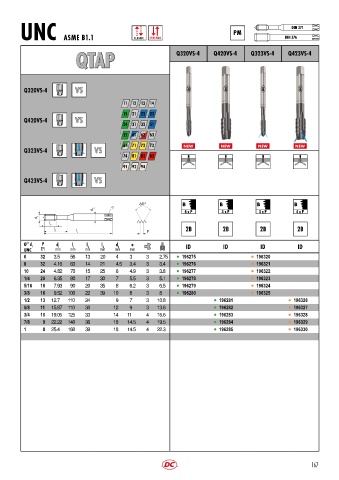

Page 170 - DC_SWISS(Catalogue_TM_ES-EN)

DIN 371
PM
UNC ASME B1.1 CLASSIC SYNCHRO DIN 376
QTAP Q320VS-4 Q420VS-4 Q323VS-4 Q423VS-4

Q320VS-4 VS

11 12 13 14
15 21 22 23
Q420VS-4 VS
24 31 32 51
52 61 62 63

NEW
NEW
NEW
NEW
Q323VS-4 VS 71 72 73 NEW NEW NEW NEW
74 81 82 83
91 92 94
Q423VS-4 VS

B B B B
a
d 2 4 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
6 32 3.5 56 13 20 4 3 3 2.75 l 196275 l 196320
8 32 4.16 63 14 21 4.5 3.4 3 3.4 l 196276 l 196321
10 24 4.82 70 15 25 6 4.9 3 3.8 l 196277 l 196322
1/4 20 6.35 80 17 30 7 5.5 3 5.1 l 196278 l 196323
5/16 18 7.93 90 20 35 8 6.2 3 6.5 l 196279 l 196324
3/8 16 9.52 100 22 39 10 8 3 8 l 196280 l 196325
1/2 13 12.7 110 24 9 7 3 10.8 l 196281 l 196326
5/8 11 15.87 110 30 12 9 3 13.6 l 196282 l 196327
3/4 10 19.05 125 33 14 11 4 16.6 l 196283 l 196328
7/8 9 22.22 140 36 18 14.5 4 19.5 l 196284 l 196329
1 8 25.4 160 39 18 14.5 4 22.3 l 196285 l 196330
