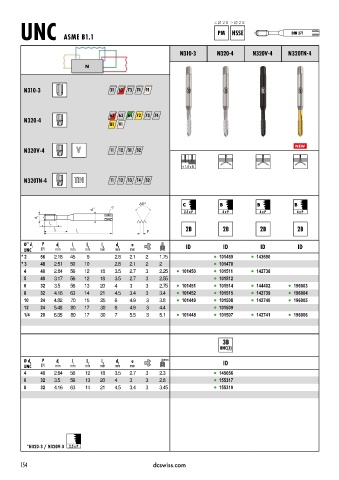

Page 157 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
UNC ASME B1.1

N310 3 N320 4 N320V 4 N320TN 4

N

N310-3 31 62 73 74 91

62 63 72 73 74
N320-4
81 91

NEW
N320V-4 V 11 12 31 32 NEW

< 1.5 x D

N320TN-4 TiN 11 12 13 14 32

C B B B
a
d 2
2.5 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID ID
UNC TPI mm mm mm mm mm mm
* 2 56 2.18 45 9 2.8 2.1 2 1.75 l 101469 l 143690
* 3 48 2.51 50 10 2.8 2.1 2 2 l 101470
4 40 2.84 56 12 18 3.5 2.7 3 2.25 l 101450 l 101511 l 142738
5 40 3.17 56 12 18 3.5 2.7 3 2.55 l 101512
6 32 3.5 56 13 20 4 3 3 2.75 l 101451 l 101514 l 144402 l 196003
8 32 4.16 63 14 21 4.5 3.4 3 3.4 l 101452 l 101515 l 142739 l 196004
10 24 4.82 70 15 25 6 4.9 3 3.8 l 101449 l 101508 l 142740 l 196005
12 24 5.48 80 17 30 6 4.9 3 4.4 l 101509
1/4 20 6.35 80 17 30 7 5.5 3 5.1 l 101448 l 101507 l 142741 l 196006

Ø d 1 P d 1 l 1 l 2 l 3 d 2 a UNJC ID
UNC TPI mm mm mm mm mm mm
4 40 2.84 56 12 18 3.5 2.7 3 2.3 l 145656
6 32 3.5 56 13 20 4 3 3 2.8 l 155317
8 32 4.16 63 14 21 4.5 3.4 3 3.45 l 155319

*N320-3 / N320V-3 2.5 x P
