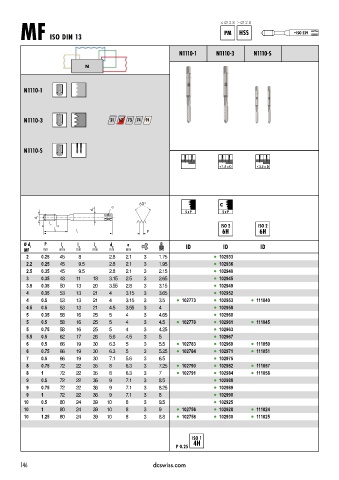

≤ Ø 2.8 > Ø 2.8
PM HSS ~ ISO 529
MF ISO DIN 13

N1110 1 N1110 3 N1110 S

N

N1110-1

N1110-3 31 62 73 74 91

N1110-S

< 1.5 x D < 2.5 x D

C
a
d 2
5 x P 2 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID
MF mm mm mm mm mm mm
2 0.25 45 8 2.8 2.1 3 1.75 l 102933
2.2 0.25 45 9.5 2.8 2.1 3 1.95 l 102936
2.5 0.35 45 9.5 2.8 2.1 3 2.15 l 102940
3 0.35 48 11 18 3.15 2.5 3 2.65 l 102945
3.5 0.35 50 13 20 3.55 2.8 3 3.15 l 102949
4 0.35 53 13 21 4 3.15 3 3.65 l 102952
4 0.5 53 13 21 4 3.15 3 3.5 l 102773 l 102953 l 111040
4.5 0.5 53 13 21 4.5 3.55 3 4 l 102958
5 0.35 58 16 25 5 4 3 4.65 l 102960
5 0.5 58 16 25 5 4 3 4.5 l 102778 l 102961 l 111045
5 0.75 58 16 25 5 4 3 4.25 l 102963
5.5 0.5 62 17 26 5.6 4.5 3 5 l 102967
6 0.5 66 19 30 6.3 5 3 5.5 l 102783 l 102969 l 111050
6 0.75 66 19 30 6.3 5 3 5.25 l 102784 l 102971 l 111051
7 0.5 66 19 30 7.1 5.6 3 6.5 l 102975
8 0.75 72 22 35 8 6.3 3 7.25 l 102790 l 102982 l 111057
8 1 72 22 35 8 6.3 3 7 l 102791 l 102984 l 111058
9 0.5 72 22 36 9 7.1 3 8.5 l 102988
9 0.75 72 22 36 9 7.1 3 8.25 l 102989
9 1 72 22 36 9 7.1 3 8 l 102990
10 0.5 80 24 39 10 8 3 9.5 l 102925
10 1 80 24 39 10 8 3 9 l 102756 l 102928 l 111024
10 1.25 80 24 39 10 8 3 8.8 l 102758 l 102930 l 111025

P 0.25
