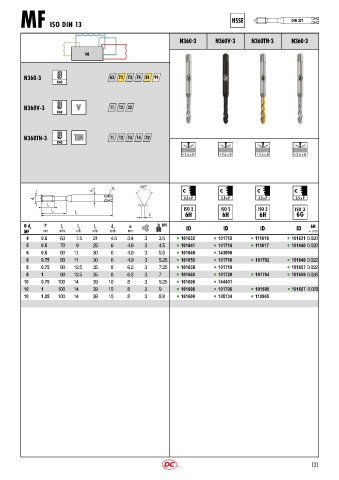

Page 134 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 371
MF ISO DIN 13

N360 3 N360V 3 N360TN 3 N360 3

N

N360-3 63 72 73 74 81 91
R40

N360V-3 V 11 12 32
R40

N360TN-3 TiN 11 12 13 14 32
R40
< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

a
d 2 C C C C
d 1 2.5 x P 2.5 x P 2.5 x P 2.5 x P
l 2
l 3 l
1 P
Ø d 1 P l 1 l 2 l 3 d 2 a 6H ID ID ID ID 6H
MF mm mm mm mm mm mm + mm
4 0.5 63 7.5 21 4.5 3.4 3 3.5 l 101632 l 101712 l 111618 l 101631 0.020
5 0.5 70 9 25 6 4.9 3 4.5 l 101641 l 101714 l 111617 l 101640 0.020
6 0.5 80 11 30 6 4.9 3 5.5 l 101648 l 143990
6 0.75 80 11 30 6 4.9 3 5.25 l 101650 l 101716 l 101702 l 101649 0.022
8 0.75 90 12.5 35 8 6.2 3 7.25 l 101658 l 101719 l 101657 0.022
8 1 90 12.5 35 8 6.2 3 7 l 101660 l 101720 l 101704 l 101659 0.026
10 0.75 100 14 39 10 8 3 9.25 l 101606 l 144401
10 1 100 14 39 10 8 3 9 l 101608 l 101706 l 101695 l 101607 0.026
10 1.25 100 14 39 10 8 3 8.8 l 101609 l 105134 l 110965
