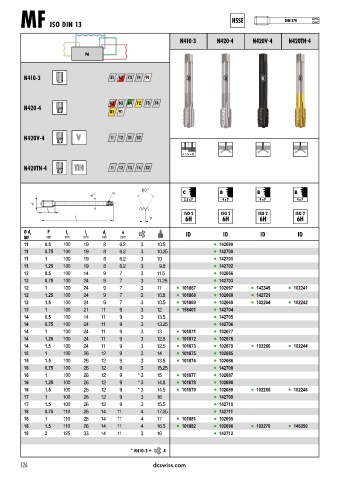

Page 129 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 374
MF ISO DIN 13

N410 3 N420 4 N420V 4 N420TN 4

N

N410-3 31 62 73 74 91

62 63 72 73 74
N420-4
81 91

N420V-4 V 11 12 31 32

< 1.5 x D

N420TN-4 TiN 11 12 13 14 32

a C B B B
d 2
2.5 x P 4 x P 4 x P 4 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
MF mm mm mm mm mm
11 0.5 100 19 8 6.2 3 10.5 l 142699
11 0.75 100 19 8 6.2 3 10.25 l 142700
11 1 100 19 8 6.2 3 10 l 142701
11 1.25 100 19 8 6.2 3 9.8 l 142702
12 0.5 100 14 9 7 3 11.5 l 102066
12 0.75 100 24 9 7 3 11.25 l 142703
12 1 100 24 9 7 3 11 l 101867 l 102067 l 142345 l 102241
12 1.25 100 24 9 7 3 10.8 l 101868 l 102068 l 142721
12 1.5 100 24 9 7 3 10.5 l 101869 l 102069 l 102264 l 102242
13 1 100 21 11 9 3 12 l 158401 l 142704
14 0.5 100 14 11 9 3 13.5 l 142705
14 0.75 100 24 11 9 3 13.25 l 142706
14 1 100 24 11 9 3 13 l 101871 l 102077
14 1.25 100 24 11 9 3 12.8 l 101872 l 102078
14 1.5 100 24 11 9 3 12.5 l 101873 l 102079 l 102266 l 102244
15 1 100 26 12 9 3 14 l 101875 l 102085
15 1.5 100 26 12 9 3 13.5 l 101876 l 102086
16 0.75 100 26 12 9 3 15.25 l 142708
16 1 100 26 12 9 * 3 15 l 101877 l 102087
16 1.25 100 26 12 9 * 3 14.8 l 101878 l 102088
16 1.5 100 26 12 9 * 3 14.5 l 101879 l 102089 l 102268 l 102246
17 1 100 26 12 9 3 16 l 142709
17 1.5 100 26 12 9 3 15.5 l 142710
18 0.75 110 26 14 11 4 17.25 l 142711
18 1 110 26 14 11 4 17 l 101881 l 102095
18 1.5 110 26 14 11 4 16.5 l 101882 l 102096 l 102270 l 145350
18 2 125 33 14 11 3 16 l 142712

* N410-3 = 4
