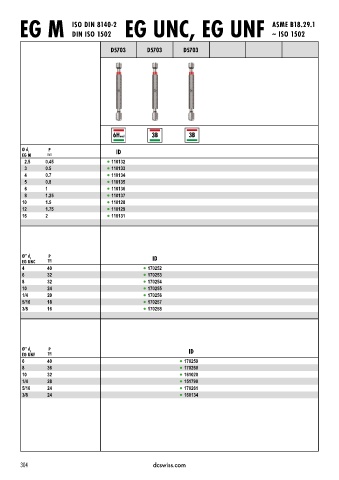

Page 307 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 8140-2 ASME B18.29.1
EG M DIN ISO 1502 EG UNC, EG UNF ISO 1502
~

D5703 D5703 D5703

Ø d 1 P ID
EG M mm
2.5 0.45 l 110132
3 0.5 l 110133
4 0.7 l 110134
5 0.8 l 110135
6 1 l 110136
8 1.25 l 110137
10 1.5 l 110128
12 1.75 l 110129
16 2 l 110131

Ø’’ d 1 P ID
EG UNC TPI
4 40 l 170252
6 32 l 170253
8 32 l 170254
10 24 l 170255
1/4 20 l 170256
5/16 18 l 170257
3/8 16 l 170258

Ø’’ d 1 P ID
EG UNF TPI
6 40 l 170259
8 36 l 170260
10 32 l 161020
1/4 28 l 151790
5/16 24 l 170261
3/8 24 l 160134

304 dcswiss.com
