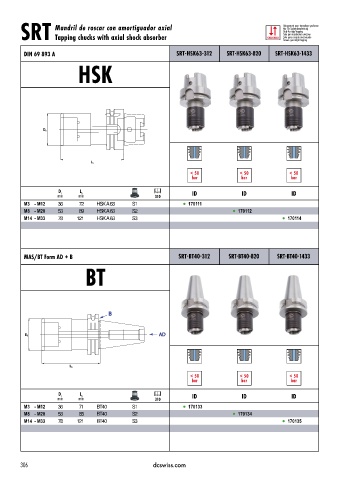

SRT Mandril de roscar con amortiguador axial SYNCHRO Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung
Only for rigid tapping
Tapping chucks with axial shock absorber
Solo per maschiatura sincrona
Solo para roscado sincronizado
Только для ridgid tapping
DIN 69 893 A SRT•HSK63•312 SRT•HSK63•820 SRT•HSK63•1433
HSK

D 1

L 1

D L &
mm 1 mm 1 310 ID ID ID
M3 - M12 36 72 HSK A 63 S1 l 170111
M8 - M20 53 89 HSK A 63 S2 l 170112
M14 - M33 78 121 HSK A 63 S3 l 170114

MAS/BT Form AD + B SRT•BT40•312 SRT•BT40•820 SRT•BT40•1433

BT

B

AD
D 1

L 1

D L &
mm 1 mm 1 310 ID ID ID
M3 - M12 36 71 BT40 S1 l 170133
M8 - M20 53 85 BT40 S2 l 170134
M14 - M33 78 121 BT40 S3 l 170135
