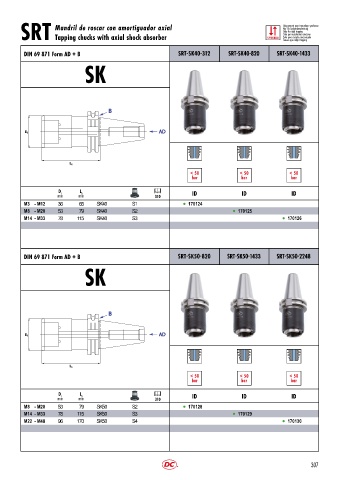

SRT Mandril de roscar con amortiguador axial SYNCHRO Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung
Only for rigid tapping
Tapping chucks with axial shock absorber
Solo per maschiatura sincrona
Solo para roscado sincronizado
Только для ridgid tapping
DIN 69 871 Form AD + B SRT•SK40•312 SRT•SK40•820 SRT•SK40•1433
SK

B

AD
D 1

L 1

D L &
mm 1 mm 1 310 ID ID ID
M3 - M12 36 65 SK40 S1 l 170124
M8 - M20 53 79 SK40 S2 l 170125
M14 - M33 78 115 SK40 S3 l 170126

DIN 69 871 Form AD + B SRT•SK50•820 SRT•SK50•1433 SRT•SK50•2248

SK

B

AD
D 1

L 1

D L &
mm 1 mm 1 310 ID ID ID
M8 - M20 53 79 SK50 S2 l 170128
M14 - M33 78 115 SK50 S3 l 170129
M22 - M48 96 170 SK50 S4 l 170130
