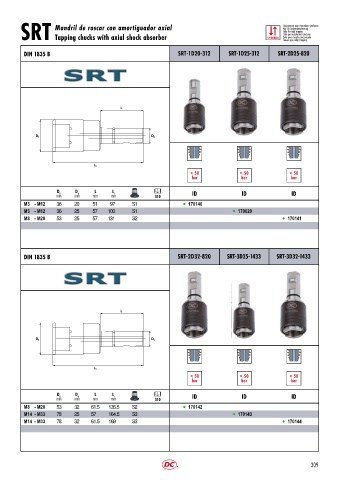

SRT Mandril de roscar con amortiguador axial SYNCHRO Uniquement pour taraudage synchrone
Nur für Sychronbearbeitung
Only for rigid tapping
Tapping chucks with axial shock absorber
Solo per maschiatura sincrona
Solo para roscado sincronizado
Только для ridgid tapping
DIN 1835 B SRT•1D20•312 SRT•1D25•312 SRT•2D25•820

L

D 1 D 2

L 1

D D L L &
mm 1 mm 2 mm mm 1 310 ID ID ID
M3 - M12 36 20 51 97 S1 l 170140
M3 - M12 36 25 57 103 S1 l 170020
M8 - M20 53 25 57 131 S2 l 170141

DIN 1835 B SRT•2D32•820 SRT•3D25•1433 SRT•3D32•1433

L

D 1 D 2

L 1

D D L L &
mm 1 mm 2 mm mm 1 310 ID ID ID
M8 - M20 53 32 61.5 135.5 S2 l 170142
M14 - M33 78 25 57 164.5 S3 l 170143
M14 - M33 78 32 61.5 169 S3 l 170144
