Page 420 - DC_SWISS(Catalogue_TM_ES-EN)

Safelock SA
Grand-Rue 19 / C.P. 324
CH-2735 Malleray
Tel. +41 32 491 63 63
Fax +41 32 491 64 64
E-mail: info@micro-safelock.ch
TVA/MWST: CHE-105.503.042 TVA
DIMENSIONS SAFELOCK
Pas
angle
Dimension
flancs de
d
1
1
mm
mm
mm
1
l’écrou
0.278
0.264
0.06
30°/60°
56°
SL 0.3
0.314
56°
0.06
30°/60°
0.328
0.297
SL 0.35
0.356
0.372
0.08
30°/60°
56°
0.331
SL 0.4
0.448
0.416
0.466
30°/60°
0.1
56°
SL 0.5
56°
0.538
30°/60°
0.559
0.496
SL 0.6
56°
0.15
0.651
0.576
0.628
30°/60°
SL 0.7 0.125 D mini D maxi angles de flanc vis 0.247 ®
SL 0.8 0.15 0.728 0.751 30°/60° 56° 0.676

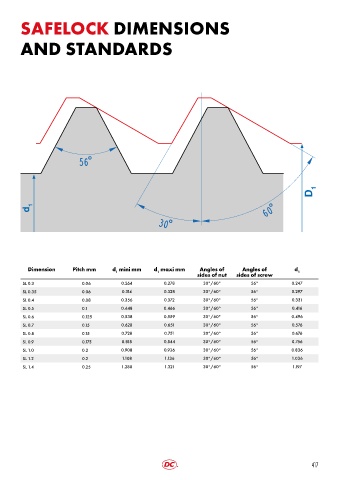

SAFELOCK DIMENSIONS 56° 0.756
0.844
0.175
30°/60°
0.818
SL 0.9
AND STANDARDS 30°/60° 56° 0.836
0.2
0.908
0.936
SL 1
SL 1.2 0.2 1.108 1.136 30°/60° 56° 1.036
SL 1.4 0.25 1.288 1.321 30°/60° 56° 1.197
D 1
d 1
Safelock SA Grand-Rue 19 Case postale 324 CH-2735 Malleray Tel. +41 32 491 63 63 Fax +41 32 491 64 64
Dimension Pitch mm d mini mm d maxi mm Angles of Angles of d
1 1 1
sides of nut sides of screw
SL 0.3 0.06 0.264 0.278 30°/60° 56° 0.247
SL 0.35 0.06 0.314 0.328 30°/60° 56° 0.297
SL 0.4 0.08 0.356 0.372 30°/60° 56° 0.331
SL 0.5 0.1 0.448 0.466 30°/60° 56° 0.416
SL 0.6 0.125 0.538 0.559 30°/60° 56° 0.496
SL 0.7 0.15 0.628 0.651 30°/60° 56° 0.576
SL 0.8 0.15 0.728 0.751 30°/60° 56° 0.676
SL 0.9 0.175 0.818 0.844 30°/60° 56° 0.756
SL 1.0 0.2 0.908 0.936 30°/60° 56° 0.836
SL 1.2 0.2 1.108 1.136 30°/60° 56° 1.036
SL 1.4 0.25 1.288 1.321 30°/60° 56° 1.197

417
