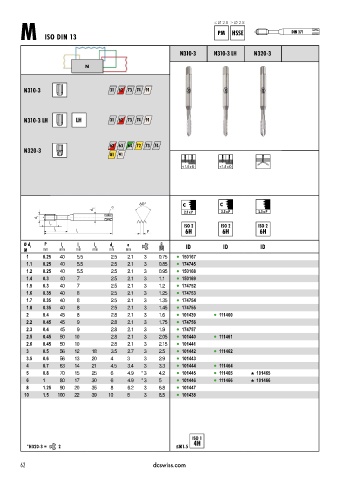

Page 65 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
M ISO DIN 13

N310«3 N310-3 LH N320-3

N

N310-3 31 62 73 74 91

N310-3 LH LH 31 62 73 74 91

62 63 72 73 74
N320-3
81 91

< 1.5 x D < 1.5 x D

C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID
M mm mm mm mm mm mm
1 0.25 40 5.5 2.5 2.1 3 0.75 l 150167
1.1 0.25 40 5.5 2.5 2.1 3 0.85 l 174745
1.2 0.25 40 5.5 2.5 2.1 3 0.95 l 150168
1.4 0.3 40 7 2.5 2.1 3 1.1 l 150169
1.5 0.3 40 7 2.5 2.1 3 1.2 l 174752
1.6 0.35 40 8 2.5 2.1 3 1.25 l 174753
1.7 0.35 40 8 2.5 2.1 3 1.35 l 174754
1.8 0.35 40 8 2.5 2.1 3 1.45 l 174755
2 0.4 45 8 2.8 2.1 3 1.6 l 101439 l 111460
2.2 0.45 45 9 2.8 2.1 3 1.75 l 174756
2.3 0.4 45 9 2.8 2.1 3 1.9 l 174757
2.5 0.45 50 10 2.8 2.1 3 2.05 l 101440 l 111461
2.6 0.45 50 10 2.8 2.1 3 2.15 l 101441
3 0.5 56 12 18 3.5 2.7 3 2.5 l 101442 l 111462
3.5 0.6 56 13 20 4 3 3 2.9 l 101443
4 0.7 63 14 21 4.5 3.4 3 3.3 l 101444 l 111464
5 0.8 70 15 25 6 4.9 * 3 4.2 l 101445 l 111465 101465
6 1 80 17 30 6 4.9 * 3 5 l 101446 l 111466 101466
8 1.25 90 20 35 8 6.2 3 6.8 l 101447
10 1.5 100 22 39 10 8 3 8.5 l 101438

*N320-3 = 2 ≤M1.5
