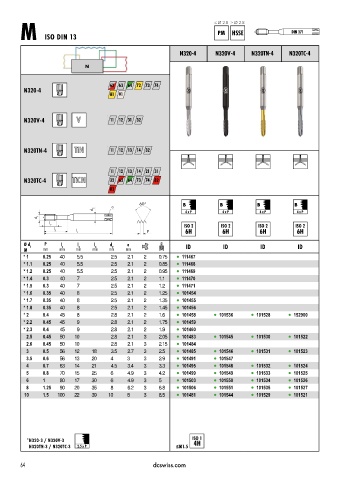

Page 67 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
M ISO DIN 13

N320«4 N320V«4 N320TN«4 N320TC«4

N

62 63 72 73 74
N320-4
81 91

N320V-4 V 11 12 31 32

N320TN-4 TiN 11 12 13 14 32

11 12 13 14 21 31
N320TC-4 TiCN 32 73 74 82
83

B B B B
a
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
* 1 0.25 40 5.5 2.5 2.1 2 0.75 l 111467
* 1.1 0.25 40 5.5 2.5 2.1 2 0.85 l 111468
* 1.2 0.25 40 5.5 2.5 2.1 2 0.95 l 111469
* 1.4 0.3 40 7 2.5 2.1 2 1.1 l 111470
* 1.5 0.3 40 7 2.5 2.1 2 1.2 l 111471
* 1.6 0.35 40 8 2.5 2.1 2 1.25 l 101454
* 1.7 0.35 40 8 2.5 2.1 2 1.35 l 101455
* 1.8 0.35 40 8 2.5 2.1 2 1.45 l 101456
* 2 0.4 45 8 2.8 2.1 2 1.6 l 101458 l 101536 l 101528 l 152900
* 2.2 0.45 45 9 2.8 2.1 2 1.75 l 101459
* 2.3 0.4 45 9 2.8 2.1 2 1.9 l 101460
2.5 0.45 50 10 2.8 2.1 3 2.05 l 101483 l 101545 l 101530 l 101522
2.6 0.45 50 10 2.8 2.1 3 2.15 l 101484
3 0.5 56 12 18 3.5 2.7 3 2.5 l 101485 l 101546 l 101531 l 101523
3.5 0.6 56 13 20 4 3 3 2.9 l 101491 l 101547
4 0.7 63 14 21 4.5 3.4 3 3.3 l 101495 l 101548 l 101532 l 101524
5 0.8 70 15 25 6 4.9 3 4.2 l 101499 l 101549 l 101533 l 101525
6 1 80 17 30 6 4.9 3 5 l 101503 l 101550 l 101534 l 101526
8 1.25 90 20 35 8 6.2 3 6.8 l 101506 l 101551 l 101535 l 101527
10 1.5 100 22 39 10 8 3 8.5 l 101481 l 101544 l 101529 l 101521

*N320-3 / N320V-3
*N320TN-3 / N320TC-3 2.5 x P ≤M1.5
