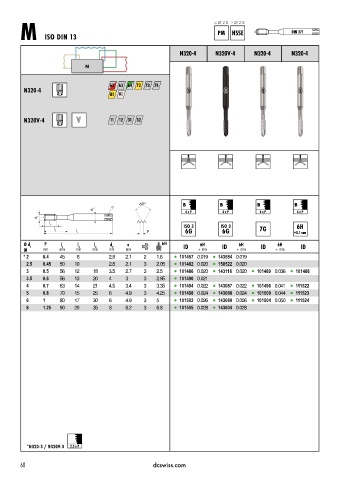

Page 71 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
M ISO DIN 13

N320«4 N320V«4 N320«4 N320«4

N

62 63 72 73 74
N320-4
81 91

N320V-4 V 11 12 31 32

B B B B
a
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l
2 6H
l
3 l P
1 +0.1 mm
Ø d 1 P l 1 l 2 l 3 d 2 a 6H ID 6H ID 6H ID 6H ID
M mm mm mm mm mm mm + mm + mm + mm
* 2 0.4 45 8 2.8 2.1 2 1.6 l 101457 0.019 l 143584 0.019
2.5 0.45 50 10 2.8 2.1 3 2.05 l 101482 0.020 l 150522 0.020
3 0.5 56 12 18 3.5 2.7 3 2.5 l 101486 0.020 l 143116 0.020 l 101489 0.036 l 101488
3.5 0.6 56 13 20 4 3 3 2.95 l 101490 0.021
4 0.7 63 14 21 4.5 3.4 3 3.35 l 101494 0.022 l 143087 0.022 l 101496 0.041 l 111522
5 0.8 70 15 25 6 4.9 3 4.25 l 101498 0.024 l 143088 0.024 l 101500 0.044 l 111523
6 1 80 17 30 6 4.9 3 5 l 101502 0.026 l 143089 0.026 l 101504 0.050 l 111524
8 1.25 90 20 35 8 6.2 3 6.8 l 101505 0.028 l 143604 0.028

*N320-3 / N320V-3 2.5 x P
