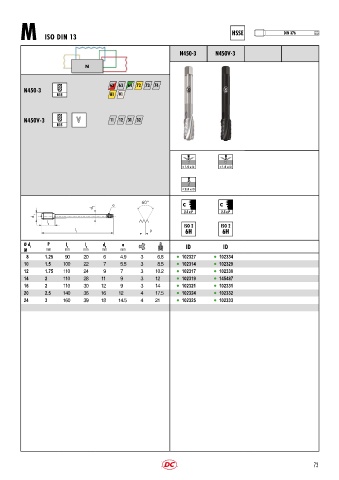

P. 76
HSSE DIN 376
M ISO DIN 13
N450«3 N450V«3
N
62 63 72 73 74
N450-3
R15 81 91
N450V-3 V 11 12 31 32
R15
a
d 2 < 1.5 x D < 1.5 x D
d 1
l 2
l
3 l P
1
< 2.5 x D
a C C
d 2
2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID
M mm mm mm mm mm
8 1.25 90 20 6 4.9 3 6.8 l 102327 l 102334
10 1.5 100 22 7 5.5 3 8.5 l 102314 l 102329
12 1.75 110 24 9 7 3 10.2 l 102317 l 102330
14 2 110 28 11 9 3 12 l 102319 l 145487
16 2 110 30 12 9 3 14 l 102321 l 102331
20 2.5 140 36 16 12 4 17.5 l 102324 l 102332
24 3 160 39 18 14.5 4 21 l 102325 l 102333
