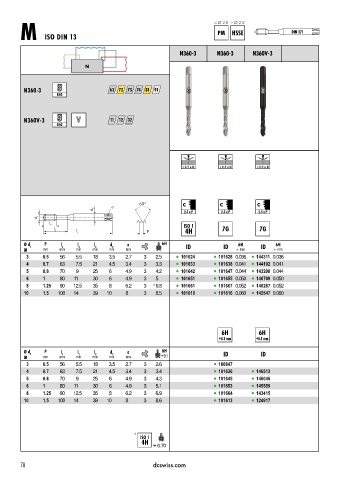

Page 81 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
M ISO DIN 13

N360«3 N360«3 N360V«3

N

N360-3 63 72 73 74 81 91
R40

N360V-3 V 11 12 32
R40

< 2.5 x D < 2.5 x D < 2.5 x D

C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a 6H ID ID 6H ID 6H
M mm mm mm mm mm mm + mm + mm
3 0.5 56 5.5 18 3.5 2.7 3 2.5 l 101624 l 101628 0.036 l 144311 0.036
4 0.7 63 7.5 21 4.5 3.4 3 3.3 l 101633 l 101638 0.041 l 144192 0.041
5 0.8 70 9 25 6 4.9 3 4.2 l 101642 l 101647 0.044 l 143208 0.044
6 1 80 11 30 6 4.9 3 5 l 101651 l 101655 0.050 l 146709 0.050
8 1.25 90 12.5 35 8 6.2 3 ∆ 6.8 l 101661 l 101667 0.052 l 146267 0.052
10 1.5 100 14 39 10 8 3 8.5 l 101610 l 101616 0.060 l 142547 0.060

6H 6H
+0.1 mm +0.1 mm
Ø d 1 P l 1 l 2 l 3 d 2 a 6H ID ID
M mm mm mm mm mm mm +0.1
3 0.5 56 5.5 18 3.5 2.7 3 2.6 l 160847
4 0.7 63 7.5 21 4.5 3.4 3 3.4 l 101636 l 146513
5 0.8 70 9 25 6 4.9 3 4.3 l 101645 l 146046
6 1 80 11 30 6 4.9 3 5.1 l 101653 l 145559
8 1.25 90 12.5 35 8 6.2 3 6.9 l 101664 l 143415
10 1.5 100 14 39 10 8 3 8.6 l 101613 l 124917

∆
= 6.70
