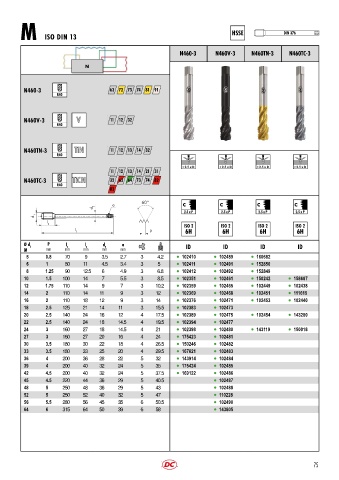

Page 78 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 376
M ISO DIN 13

N460«3 N460V«3 N460TN«3 N460TC«3

N

N460-3 63 72 73 74 81 91
R40

N460V-3 V 11 12 32
R40

N460TN-3 TiN 11 12 13 14 32
R40

< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D
11 12 13 14 21 31
N460TC-3 TiCN 32 73 74 82
R40
83

a C C C C
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
5 0.8 70 9 3.5 2.7 3 4.2 l 102410 l 102489 l 160682
6 1 80 11 4.5 3.4 3 5 l 102411 l 102491 l 152850
8 1.25 90 12.5 6 4.9 3 6.8 l 102412 l 102492 l 152849
10 1.5 100 14 7 5.5 3 8.5 l 102351 l 102461 l 150242 l 158687
12 1.75 110 14 9 7 3 10.2 l 102359 l 102465 l 102449 l 102438
14 2 110 14 11 9 3 12 l 102369 l 102468 l 102451 l 111615
16 2 110 18 12 9 3 14 l 102376 l 102471 l 102453 l 102440
18 2.5 125 21 14 11 3 15.5 l 102383 l 102473
20 2.5 140 24 16 12 4 17.5 l 102389 l 102475 l 102454 l 143280
22 2.5 140 24 18 14.5 4 19.5 l 102394 l 102477
24 3 160 27 18 14.5 4 21 l 102398 l 102480 l 143119 l 150018
27 3 160 27 20 16 4 24 l 175423 l 102481
30 3.5 180 30 22 18 4 26.5 l 150246 l 102482
33 3.5 180 33 25 20 4 29.5 l 167621 l 102483
36 4 200 36 28 22 5 32 l 143914 l 102484
39 4 200 40 32 24 5 35 l 175424 l 102485
42 4.5 200 40 32 24 5 37.5 l 169122 l 102486
45 4.5 220 44 36 29 5 40.5 l 102487
48 5 250 48 36 29 5 43 l 102488
52 5 250 52 40 32 5 47 l 110228
56 5.5 280 56 45 35 6 50.5 l 102490
64 6 315 64 50 39 6 58 l 143805
