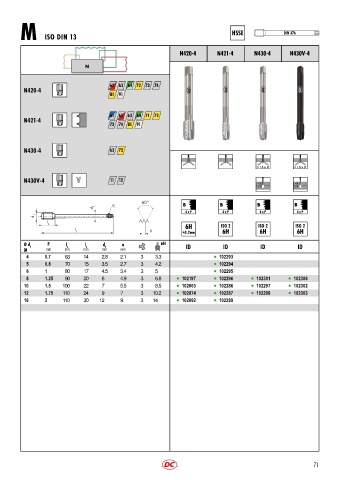

Page 74 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 376
M ISO DIN 13

N420«4 N421«4 N430«4 N430V«4

N

62 63 72 73 74
N420-4
81 91

61 62 63 71 72
N421-4
73 74 81 91

N430-4 63 72

< 1.5 x D < 1.5 x D

N430V-4 V 11 12

a B B B B
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a 6H ID ID ID ID
M mm mm mm mm mm
4 0.7 63 14 2.8 2.1 3 3.3 l 102293
5 0.8 70 15 3.5 2.7 3 4.2 l 102294
6 1 80 17 4.5 3.4 3 5 l 102295
8 1.25 90 20 6 4.9 3 6.8 l 102197 l 102296 l 102301 l 102306
10 1.5 100 22 7 5.5 3 8.5 l 102063 l 102286 l 102297 l 102302
12 1.75 110 24 9 7 3 10.2 l 102074 l 102287 l 102298 l 102303
16 2 110 30 12 9 3 14 l 102092 l 102289
