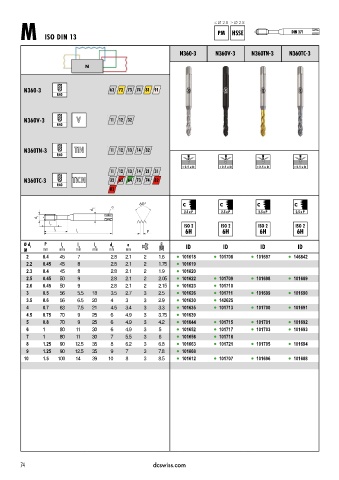

Page 77 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
PM HSSE DIN 371
M ISO DIN 13

N360«3 N360V«3 N360TN«3 N360TC«3

N

N360-3 63 72 73 74 81 91
R40

N360V-3 V 11 12 32
R40

N360TN-3 TiN 11 12 13 14 32
R40

< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D
11 12 13 14 21 31
N360TC-3 TiCN 32 73 74 82
R40
83

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
2 0.4 45 7 2.8 2.1 2 1.6 l 101618 l 101708 l 101697 l 146842
2.2 0.45 45 8 2.8 2.1 2 1.75 l 101619
2.3 0.4 45 8 2.8 2.1 2 1.9 l 101620
2.5 0.45 50 9 2.8 2.1 2 2.05 l 101622 l 101709 l 101698 l 101689
2.6 0.45 50 9 2.8 2.1 2 2.15 l 101623 l 101710
3 0.5 56 5.5 18 3.5 2.7 3 2.5 l 101626 l 101711 l 101699 l 101690
3.5 0.6 56 6.5 20 4 3 3 2.9 l 101630 l 142625
4 0.7 63 7.5 21 4.5 3.4 3 3.3 l 101635 l 101713 l 101700 l 101691
4.5 0.75 70 9 25 6 4.9 3 3.75 l 101639
5 0.8 70 9 25 6 4.9 3 4.2 l 101644 l 101715 l 101701 l 101692
6 1 80 11 30 6 4.9 3 5 l 101652 l 101717 l 101703 l 101693
7 1 80 11 30 7 5.5 3 6 l 101656 l 101718
8 1.25 90 12.5 35 8 6.2 3 6.8 l 101663 l 101721 l 101705 l 101694
9 1.25 90 12.5 35 9 7 3 7.8 l 101668
10 1.5 100 14 39 10 8 3 8.5 l 101612 l 101707 l 101696 l 101688
