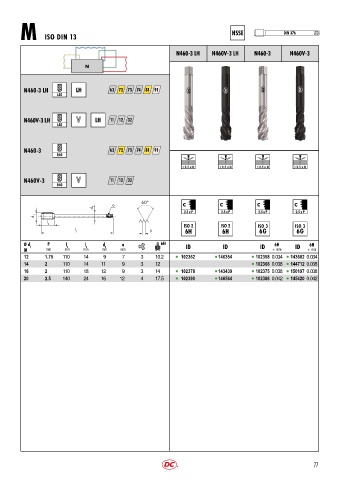

Page 80 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 376
M ISO DIN 13

N460«3 LH N460V«3 LH N460«3 N460V«3

N

N460-3 LH LH 63 72 73 74 81 91
L40

N460V-3 LH V LH 11 12 32
L40

N460-3 63 72 73 74 81 91
R40

< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

N460V-3 V 11 12 32
R40

a C C C C
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a 6H ID ID ID 6H ID 6H
M mm mm mm mm mm + mm + mm
12 1.75 110 14 9 7 3 10.2 l 102362 l146354 l 102358 0.034 l 143602 0.034
14 2 110 14 11 9 3 12 l 102368 0.038 l 144712 0.038
16 2 110 18 12 9 3 14 l 102378 l143439 l 102375 0.038 l 150197 0.038
20 2.5 140 24 16 12 4 17.5 l 102390 l146564 l 102388 0.042 l 145420 0.042
