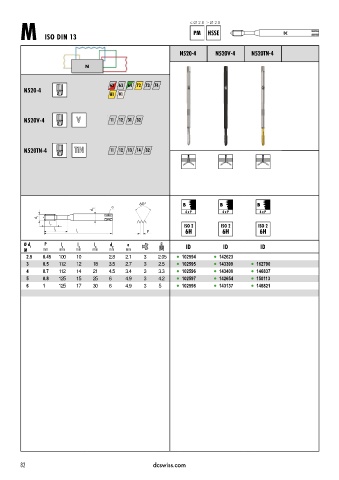

Page 85 - DC_SWISS(Catalogue_TM_ES-EN)
P. 85
≤ Ø 2.8 > Ø 2.8
PM HSSE DC
M ISO DIN 13
N520«4 N520V«4 N520TN«4
N
62 63 72 73 74
N520-4
81 91
N520V-4 V 11 12 31 32
N520TN-4 TiN 11 12 13 14 32
B B B
a
d 2
4 x P 4 x P 4 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID
M mm mm mm mm mm mm
2.5 0.45 100 10 2.8 2.1 3 2.05 l 102594 l 142623
3 0.5 112 12 18 3.5 2.7 3 2.5 l 102595 l 143399 l 162790
4 0.7 112 14 21 4.5 3.4 3 3.3 l 102596 l 143400 l 146837
5 0.8 125 15 25 6 4.9 3 4.2 l 102597 l 142654 l 150113
6 1 125 17 30 6 4.9 3 5 l 102598 l 143137 l 148821
