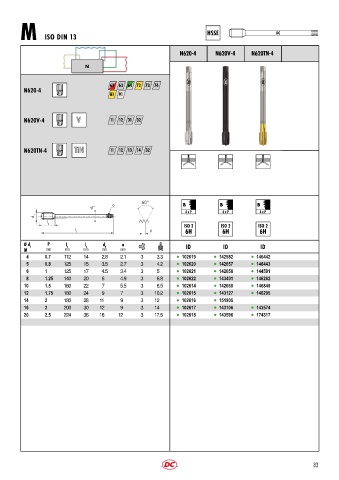

P. 86
HSSE DC
M ISO DIN 13
N620«4 N620V«4 N620TN«4
N
62 63 72 73 74
N620-4
81 91
N620V-4 V 11 12 31 32
N620TN-4 TiN 11 12 13 14 32
a B B B
d 2
4 x P 4 x P 4 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID
M mm mm mm mm mm
4 0.7 112 14 2.8 2.1 3 3.3 l 102619 l 142582 l 146442
5 0.8 125 15 3.5 2.7 3 4.2 l 102620 l 142657 l 146443
6 1 125 17 4.5 3.4 3 5 l 102621 l 142658 l 144591
8 1.25 140 20 6 4.9 3 6.8 l 102622 l 143401 l 146262
10 1.5 160 22 7 5.5 3 8.5 l 102614 l 142660 l 146849
12 1.75 180 24 9 7 3 10.2 l 102615 l 143127 l 146295
14 2 180 28 11 9 3 12 l 102616 l 151905
16 2 200 30 12 9 3 14 l 102617 l 143106 l 143574
20 2.5 224 36 16 12 3 17.5 l 102618 l 143596 l 174317
83 83
