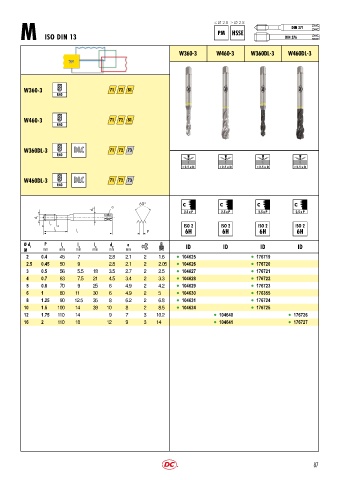

Page 90 - DC_SWISS(Catalogue_TM_ES-EN)

≤ Ø 2.8 > Ø 2.8
DIN 371
PM HSSE
M ISO DIN 13 DIN 376

W360«3 W460«3 W360DL«3 W460DL«3
W

W360-3 71 72 81
R40

W460-3 71 72 81
R40

W360DL-3 DLC 71 72 73
R40

< 2.5 x D < 2.5 x D < 2.5 x D < 2.5 x D

W460DL-3 DLC 71 72 73
R40

C C C C
a
d 2
2.5 x P 2.5 x P 2.5 x P 2.5 x P
d 1
l
2
l
3 l P
1
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID ID
M mm mm mm mm mm mm
2 0.4 45 7 2.8 2.1 2 1.6 l 104625 l 176719
2.5 0.45 50 9 2.8 2.1 2 2.05 l 104626 l 176720
3 0.5 56 5.5 18 3.5 2.7 2 2.5 l 104627 l 176721
4 0.7 63 7.5 21 4.5 3.4 2 3.3 l 104628 l 176722
5 0.8 70 9 25 6 4.9 2 4.2 l 104629 l 176723
6 1 80 11 30 6 4.9 2 5 l 104630 l 176355
8 1.25 90 12.5 35 8 6.2 2 6.8 l 104631 l 176724
10 1.5 100 14 39 10 8 2 8.5 l 104624 l 176725
12 1.75 110 14 9 7 3 10.2 l 104640 l 176726
16 2 110 18 12 9 3 14 l 104641 l 176727
