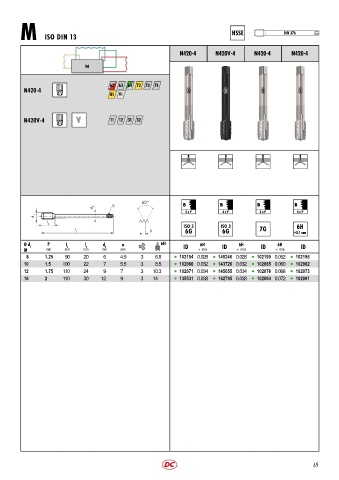

P. 72
HSSE DIN 376
M ISO DIN 13
N420«4 N420V«4 N420«4 N420«4
N
62 63 72 73 74
N420-4
81 91
N420V-4 V 11 12 31 32
a B B B B
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l 2
l 6H
1 P +0.1 mm
Ø d 1 P l 1 l 2 d 2 a 6H ID 6H ID 6H ID 6H ID
M mm mm mm mm mm + mm + mm + mm
8 1.25 90 20 6 4.9 3 6.8 l 102194 0.028 l 145246 0.028 l 102199 0.052 l 102196
10 1.5 100 22 7 5.5 3 8.5 l 102060 0.032 l 143726 0.032 l 102065 0.060 l 102062
12 1.75 110 24 9 7 3 10.3 l 102071 0.034 l 145655 0.034 l 102076 0.066 l 102073
16 2 110 30 12 9 3 14 l 135531 0.038 l 162795 0.038 l 102094 0.072 l 102091
