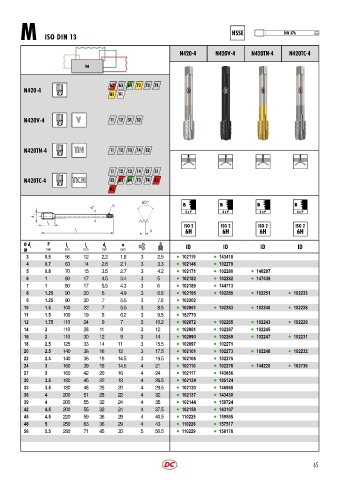

Page 68 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 376
M ISO DIN 13

N420«4 N420V«4 N420TN«4 N420TC«4

N

62 63 72 73 74
N420-4
81 91

N420V-4 V 11 12 31 32

N420TN-4 TiN 11 12 13 14 32

11 12 13 14 21 31
N420TC-4 TiCN 32 73 74 82
83

a B B B B
d 2
4 x P 4 x P 4 x P 4 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID ID ID
M mm mm mm mm mm
3 0.5 56 12 2.2 1.8 3 2.5 l 102119 l 143418
4 0.7 63 14 2.8 2.1 3 3.3 l 102146 l 102279
5 0.8 70 15 3.5 2.7 3 4.2 l 102171 l 102280 l 146297
6 1 80 17 4.5 3.4 3 5 l 102182 l 102282 l 147439
7 1 80 17 5.5 4.3 3 6 l 102189 l 144713
8 1.25 90 20 6 4.9 3 6.8 l 102195 l 102285 l 102251 l 102233
9 1.25 90 20 7 5.5 3 7.8 l 102202
10 1.5 100 22 7 5.5 3 8.5 l 102061 l 102263 l 102240 l 102228
11 1.5 100 19 8 6.2 3 9.5 l 162770
12 1.75 110 24 9 7 3 10.2 l 102072 l 102265 l 102243 l 102229
14 2 110 28 11 9 3 12 l 102081 l 102267 l 102245
16 2 110 30 12 9 3 14 l 102090 l 102269 l 102247 l 102231
18 2.5 125 33 14 11 3 15.5 l 102097 l 102271
20 2.5 140 36 16 12 3 17.5 l 102101 l 102273 l 102248 l 102232
22 2.5 140 36 18 14.5 3 19.5 l 102106 l 102275
24 3 160 39 18 14.5 4 21 l 102110 l 102278 l 144220 l 163736
27 3 160 42 20 16 4 24 l 102117 l 143856
30 3.5 180 45 22 18 4 26.5 l 102124 l 105124
33 3.5 180 48 25 20 4 29.5 l 102130 l 146968
36 4 200 51 28 22 4 32 l 102137 l 143430
39 4 200 55 32 24 4 35 l 102144 l 158724
42 4.5 200 55 32 24 4 37.5 l 102158 l 143107
45 4.5 220 59 36 29 4 40.5 l 110225 l 159565
48 5 250 63 36 29 4 43 l 110226 l 157517
56 5.5 280 71 45 35 5 50.5 l 110229 l 158178

65
