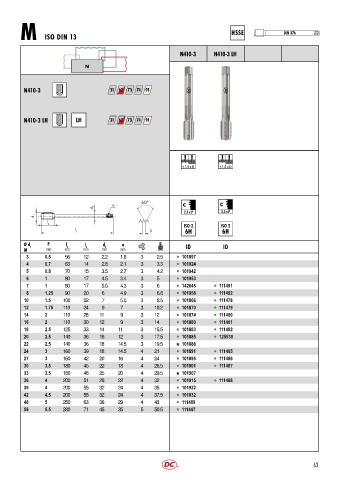

Page 66 - DC_SWISS(Catalogue_TM_ES-EN)

HSSE DIN 376
M ISO DIN 13

N410-3 N410-3 LH

N

N410-3 31 62 73 74 91

N410-3 LH LH 31 62 73 74 91

< 1.5 x D < 1.5 x D

a C C
d 2
2.5 x P 2.5 x P
d 1
l 2
l
1 P
Ø d 1 P l 1 l 2 d 2 a ID ID
M mm mm mm mm mm
3 0.5 56 12 2.2 1.8 3 2.5 l 101897
4 0.7 63 14 2.8 2.1 3 3.3 l 101924
5 0.8 70 15 3.5 2.7 3 4.2 l 101942
6 1 80 17 4.5 3.4 3 5 l 101953
7 1 80 17 5.5 4.3 3 6 l 142645 l 111491
8 1.25 90 20 6 4.9 3 6.8 l 101958 l 111492
10 1.5 100 22 7 5.5 3 8.5 l 101866 l 111478
12 1.75 110 24 9 7 3 10.2 l 101870 l 111479
14 2 110 28 11 9 3 12 l 101874 l 111480
16 2 110 30 12 9 3 14 l 101880 l 111481
18 2.5 125 33 14 11 3 15.5 l 101883 l 111482
20 2.5 140 36 16 12 3 17.5 l 101885 l 125530
22 2.5 140 36 18 14.5 3 19.5 101888
24 3 160 39 18 14.5 4 21 l 101891 l 111485
27 3 160 42 20 16 4 24 l 101895 l 111486
30 3.5 180 45 22 18 4 26.5 l 101901 l 111487
33 3.5 180 48 25 20 4 29.5 101907
36 4 200 51 28 22 4 32 l 101915 l 111488
39 4 200 55 32 24 4 35 l 101922
42 4.5 200 55 32 24 4 37.5 l 101932
48 5 250 63 36 29 4 43 l 111489
56 5.5 280 71 45 35 5 50.5 l 111447
