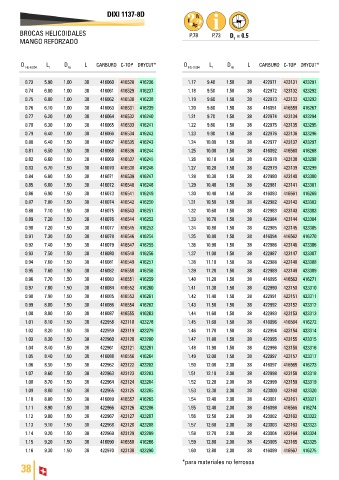

P. 40
DIXI 1137-8D
BROCAS HELICOIDALES P.78 P.73 D ≥ 0.5
MANGO REFORZADO 1
D 1 0/-0.004 L 1 D h5 L CARBURO C-TOP DRYCUT* D 1 0/-0.004 L 1 D h5 L CARBURO C-TOP DRYCUT*
0.73 5.90 1.00 30 416060 416528 416236 1.17 9.40 1.50 38 422971 423131 423291
0.74 6.00 1.00 30 416061 416529 416237 1.18 9.50 1.50 38 422972 423132 423292
0.75 6.00 1.00 30 416062 416530 416238 1.19 9.60 1.50 38 422973 423133 423293
0.76 6.10 1.00 30 416063 416531 416239 1.20 9.60 1.50 38 416091 416559 416267
0.77 6.20 1.00 30 416064 416532 416240 1.21 9.70 1.50 38 422974 423134 423294
0.78 6.30 1.00 30 416065 416533 416241 1.22 9.80 1.50 38 422975 423135 423295
0.79 6.40 1.00 30 416066 416534 416242 1.23 9.90 1.50 38 422976 423136 423296
0.80 6.40 1.50 30 416067 416535 416243 1.24 10.00 1.50 38 422977 423137 423297
0.81 6.50 1.50 30 416068 416536 416244 1.25 10.00 1.50 38 416092 416560 416268
0.82 6.60 1.50 30 416069 416537 416245 1.26 10.10 1.50 38 422978 423138 423298
0.83 6.70 1.50 30 416070 416538 416246 1.27 10.20 1.50 38 422979 423139 423299
0.84 6.80 1.50 30 416071 416539 416247 1.28 10.30 1.50 38 422980 423140 423300
0.85 6.80 1.50 30 416072 416540 416248 1.29 10.40 1.50 38 422981 423141 423301
0.86 6.90 1.50 30 416073 416541 416249 1.30 10.40 1.50 38 416093 416561 416269
0.87 7.00 1.50 30 416074 416542 416250 1.31 10.50 1.50 38 422982 423142 423302
0.88 7.10 1.50 30 416075 416543 416251 1.32 10.60 1.50 38 422983 423143 423303
0.89 7.20 1.50 30 416076 416544 416252 1.33 10.70 1.50 38 422984 423144 423304
0.90 7.20 1.50 30 416077 416545 416253 1.34 10.80 1.50 38 422985 423145 423305
0.91 7.30 1.50 30 416078 416546 416254 1.35 10.80 1.50 38 416094 416562 416270
0.92 7.40 1.50 30 416079 416547 416255 1.36 10.90 1.50 38 422986 423146 423306
0.93 7.50 1.50 30 416080 416548 416256 1.37 11.00 1.50 38 422987 423147 423307
0.94 7.60 1.50 30 416081 416549 416257 1.38 11.10 1.50 38 422988 423148 423308
0.95 7.60 1.50 30 416082 416550 416258 1.39 11.20 1.50 38 422989 423149 423309
0.96 7.70 1.50 30 416083 416551 416259 1.40 11.20 1.50 38 416095 416563 416271
0.97 7.80 1.50 30 416084 416552 416260 1.41 11.30 1.50 38 422990 423150 423310
0.98 7.90 1.50 30 416085 416553 416261 1.42 11.40 1.50 38 422991 423151 423311
0.99 8.00 1.50 30 416086 416554 416262 1.43 11.50 1.50 38 422992 423152 423312
1.00 8.00 1.50 30 416087 416555 416263 1.44 11.60 1.50 38 422993 423153 423313
1.01 8.10 1.50 38 422958 423118 423278 1.45 11.60 1.50 38 416096 416564 416272
1.02 8.20 1.50 38 422959 423119 423279 1.46 11.70 1.50 38 422994 423154 423314
1.03 8.30 1.50 38 422960 423120 423280 1.47 11.80 1.50 38 422995 423155 423315
1.04 8.40 1.50 38 422961 423121 423281 1.48 11.90 1.50 38 422996 423156 423316
1.05 8.40 1.50 38 416088 416556 416264 1.49 12.00 1.50 38 422997 423157 423317
1.06 8.50 1.50 38 422962 423122 423282 1.50 12.00 2.00 38 416097 416565 416273
1.07 8.60 1.50 38 422963 423123 423283 1.51 12.10 2.00 38 422998 423158 423318
1.08 8.70 1.50 38 422964 423124 423284 1.52 12.20 2.00 38 422999 423159 423319
1.09 8.80 1.50 38 422965 423125 423285 1.53 12.30 2.00 38 423000 423160 423320
1.10 8.80 1.50 38 416089 416557 416265 1.54 12.40 2.00 38 423001 423161 423321
1.11 8.90 1.50 38 422966 423126 423286 1.55 12.40 2.00 38 416098 416566 416274
1.12 9.00 1.50 38 422967 423127 423287 1.56 12.50 2.00 38 423002 423162 423322
1.13 9.10 1.50 38 422968 423128 423288 1.57 12.60 2.00 38 423003 423163 423323
1.14 9.20 1.50 38 422969 423129 423289 1.58 12.70 2.00 38 423004 423164 423324
1.15 9.20 1.50 38 416090 416558 416266 1.59 12.80 2.00 38 423005 423165 423325
1.16 9.30 1.50 38 422970 423130 423290 1.60 12.80 2.00 38 416099 416567 416275
*para materiales no ferrosos
