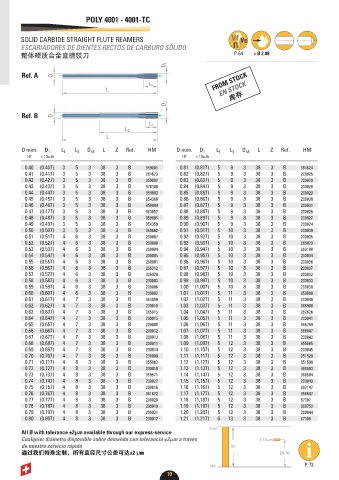

P. 12
POLY 4001 - 4001-TC
SOLID CARBIDE STRAIGHT FLUTE REAMERS
ESCARIADORES DE DIENTES RECTOS DE CARBURO SÓLIDO
整体硬质合金直槽铰刀 P. 64 > Ø 2.98
FROM STOCK
Ref. A
EN STOCK
库存
Ref. B
D nom. D L L D L Z Ref. HM D nom. D L L D L Z Ref. HM
1
h5
1
h5
2
1
2
1
H7 ± 1.5 m H7 ± 1.5 m
0.40 (0.407) 3 5 3 38 3 B 959801 0.81 (0.817) 5 9 3 38 3 B 964624
0.41 (0.417) 3 5 3 38 3 B 964623 0.82 (0.827) 5 9 3 38 3 B 200025
0.42 (0.427) 3 5 3 38 3 B 959802 0.83 (0.837) 5 9 3 38 3 B 200029
0.43 (0.437) 3 5 3 38 3 B 978100 0.84 (0.847) 5 9 3 38 3 B 200028
0.44 (0.447) 3 5 3 38 3 B 959803 0.85 (0.857) 5 9 3 38 3 B 200023
0.45 (0.457) 3 5 3 38 3 B 954360 0.86 (0.867) 5 9 3 38 3 B 200030
0.46 (0.467) 3 5 3 38 3 B 959804 0.87 (0.877) 5 9 3 38 3 B 200031
0.47 (0.477) 3 5 3 38 3 B 963057 0.88 (0.887) 5 9 3 38 3 B 200026
0.48 (0.487) 3 5 3 38 3 B 959805 0.89 (0.897) 5 9 3 38 3 B 200027
0.49 (0.497) 3 5 3 38 3 B 954359 0.90 (0.907) 5 9 3 38 3 B 200024
0.50 (0.507) 3 5 3 38 3 B 959662 0.91 (0.917) 5 10 3 38 3 B 200039
0.51 (0.517) 4 6 3 38 3 B 200007 0.92 (0.927) 5 10 3 38 3 B 200035
0.52 (0.527) 4 6 3 38 3 B 200000 0.93 (0.937) 5 10 3 38 3 B 960023
0.53 (0.537) 4 6 3 38 3 B 200004 0.94 (0.947) 5 10 3 38 3 B 963188
0.54 (0.547) 4 6 3 38 3 B 200005 0.95 (0.957) 5 10 3 38 3 B 200034
0.55 (0.557) 4 6 3 38 3 B 200001 0.96 (0.967) 5 10 3 38 3 B 200036
0.56 (0.567) 4 6 3 38 3 B 966312 0.97 (0.977) 5 10 3 38 3 B 200037
0.57 (0.577) 4 6 3 38 3 B 326970 0.98 (0.987) 5 10 3 38 3 B 200032
0.58 (0.587) 4 6 3 38 3 B 200003 0.99 (0.997) 5 10 3 38 3 B 200033
0.59 (0.597) 4 6 3 38 3 B 200006 1.00 (1.007) 5 10 3 38 3 B 200038
0.60 (0.607) 4 6 3 38 3 B 200002 1.01 (1.017) 5 11 3 38 3 B 959800
0.61 (0.617) 4 7 3 38 3 B 964889 1.02 (1.027) 5 11 3 38 3 B 200040
0.62 (0.627) 4 7 3 38 3 B 200010 1.03 (1.037) 5 11 3 38 3 B 966908
0.63 (0.637) 4 7 3 38 3 B 965815 1.04 (1.047) 5 11 3 38 3 B 962626
0.64 (0.647) 4 7 3 38 3 B 200015 1.05 (1.057) 5 11 3 38 3 B 200041
0.65 (0.657) 4 7 3 38 3 B 200008 1.06 (1.067) 5 11 3 38 3 B 966799
0.66 (0.667) 4 7 3 38 3 B 200012 1.07 (1.077) 5 11 3 38 3 B 968047
0.67 (0.677) 4 7 3 38 3 B 200013 1.08 (1.087) 5 11 3 38 3 B 200042
0.68 (0.687) 4 7 3 38 3 B 200011 1.09 (1.097) 5 12 3 38 3 B 955685
0.69 (0.697) 4 7 3 38 3 B 200014 1.10 (1.107) 5 12 3 38 3 B 200045
0.70 (0.707) 4 7 3 38 3 B 200009 1.11 (1.117) 5 12 3 38 3 B 951529
0.71 (0.717) 4 8 3 38 3 B 955902 1.12 (1.127) 5 12 3 38 3 B 951598
0.72 (0.727) 4 8 3 38 3 B 200018 1.13 (1.137) 5 12 3 38 3 B 968503
0.73 (0.737) 4 8 3 38 3 B 959571 1.14 (1.147) 5 12 3 38 3 B 968504
0.74 (0.747) 4 8 3 38 3 B 200022 1.15 (1.157) 5 12 3 38 3 B 200043
0.75 (0.757) 4 8 3 38 3 B 200016 1.16 (1.167) 5 12 3 38 3 B 967147
0.76 (0.767) 4 8 3 38 3 B 961872 1.17 (1.177) 5 12 3 38 3 B 956647
0.77 (0.777) 4 8 3 38 3 B 200020 1.18 (1.187) 5 12 3 38 3 B 67307
0.78 (0.787) 4 8 3 38 3 B 200019 1.19 (1.197) 5 12 3 38 3 B 960753
0.79 (0.797) 4 8 3 38 3 B 200021 1.20 (1.207) 5 12 3 38 3 B 200044
0.80 (0.807) 4 8 3 38 3 B 200017 1.21 (1.217) 6 13 3 38 3 B 67308
All Ø with tolerance ±2 m available through our express-service
Cualquier diámetro disponible sobre demanda con tolerancia ±2 m a través
de nuestro servicio rápido
通过我们特殊定制，所有直径尺寸公差可达±2 μm
