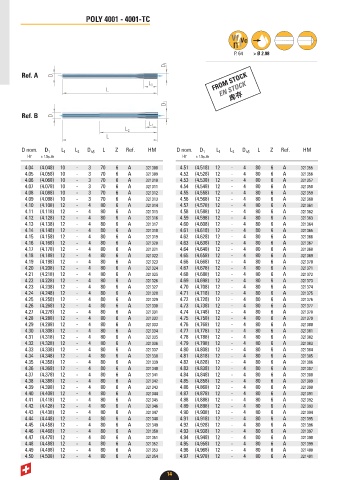

Page 16 - DC_SWISS(Catalogue_TM_ES-EN)

POLY 4001 - 4001-TC

P. 64 > Ø 2.98

FROM STOCK
Ref. A
EN STOCK
库存

Ref. B

D nom. D L L D L Z Ref. HM D nom. D L L D L Z Ref. HM
2
1
1
1
h5
2
1
h5
H7 ± 1.5 m H7 ± 1.5 m
4.04 (4.048) 10 - 3 70 6 A 321308 4.51 (4.518) 12 - 4 80 6 A 321355
4.05 (4.058) 10 - 3 70 6 A 321309 4.52 (4.528) 12 - 4 80 6 A 321356
4.06 (4.068) 10 - 3 70 6 A 321310 4.53 (4.538) 12 - 4 80 6 A 321357
4.07 (4.078) 10 - 3 70 6 A 321311 4.54 (4.548) 12 - 4 80 6 A 321358
4.08 (4.088) 10 - 3 70 6 A 321312 4.55 (4.558) 12 - 4 80 6 A 321359
4.09 (4.098) 10 - 3 70 6 A 321313 4.56 (4.568) 12 - 4 80 6 A 321360
4.10 (4.108) 12 - 4 80 6 A 321314 4.57 (4.578) 12 - 4 80 6 A 321361
4.11 (4.118) 12 - 4 80 6 A 321315 4.58 (4.588) 12 - 4 80 6 A 321362
4.12 (4.128) 12 - 4 80 6 A 321316 4.59 (4.598) 12 - 4 80 6 A 321363
4.13 (4.138) 12 - 4 80 6 A 321317 4.60 (4.608) 12 - 4 80 6 A 321364
4.14 (4.148) 12 - 4 80 6 A 321318 4.61 (4.618) 12 - 4 80 6 A 321365
4.15 (4.158) 12 - 4 80 6 A 321319 4.62 (4.628) 12 - 4 80 6 A 321366
4.16 (4.168) 12 - 4 80 6 A 321320 4.63 (4.638) 12 - 4 80 6 A 321367
4.17 (4.178) 12 - 4 80 6 A 321321 4.64 (4.648) 12 - 4 80 6 A 321368
4.18 (4.188) 12 - 4 80 6 A 321322 4.65 (4.658) 12 - 4 80 6 A 321369
4.19 (4.198) 12 - 4 80 6 A 321323 4.66 (4.668) 12 - 4 80 6 A 321370
4.20 (4.208) 12 - 4 80 6 A 321324 4.67 (4.678) 12 - 4 80 6 A 321371
4.21 (4.218) 12 - 4 80 6 A 321325 4.68 (4.688) 12 - 4 80 6 A 321372
4.22 (4.228) 12 - 4 80 6 A 321326 4.69 (4.698) 12 - 4 80 6 A 321373
4.23 (4.238) 12 - 4 80 6 A 321327 4.70 (4.708) 12 - 4 80 6 A 321374
4.24 (4.248) 12 - 4 80 6 A 321328 4.71 (4.718) 12 - 4 80 6 A 321375
4.25 (4.258) 12 - 4 80 6 A 321329 4.72 (4.728) 12 - 4 80 6 A 321376
4.26 (4.268) 12 - 4 80 6 A 321330 4.73 (4.738) 12 - 4 80 6 A 321377
4.27 (4.278) 12 - 4 80 6 A 321331 4.74 (4.748) 12 - 4 80 6 A 321378
4.28 (4.288) 12 - 4 80 6 A 321332 4.75 (4.758) 12 - 4 80 6 A 321379
4.29 (4.298) 12 - 4 80 6 A 321333 4.76 (4.768) 12 - 4 80 6 A 321380
4.30 (4.308) 12 - 4 80 6 A 321334 4.77 (4.778) 12 - 4 80 6 A 321381
4.31 (4.318) 12 - 4 80 6 A 321335 4.78 (4.788) 12 - 4 80 6 A 321382
4.32 (4.328) 12 - 4 80 6 A 321336 4.79 (4.798) 12 - 4 80 6 A 321383
4.33 (4.338) 12 - 4 80 6 A 321337 4.80 (4.808) 12 - 4 80 6 A 321384
4.34 (4.348) 12 - 4 80 6 A 321338 4.81 (4.818) 12 - 4 80 6 A 321385
4.35 (4.358) 12 - 4 80 6 A 321339 4.82 (4.828) 12 - 4 80 6 A 321386
4.36 (4.368) 12 - 4 80 6 A 321340 4.83 (4.838) 12 - 4 80 6 A 321387
4.37 (4.378) 12 - 4 80 6 A 321341 4.84 (4.848) 12 - 4 80 6 A 321388
4.38 (4.388) 12 - 4 80 6 A 321342 4.85 (4.858) 12 - 4 80 6 A 321389
4.39 (4.398) 12 - 4 80 6 A 321343 4.86 (4.868) 12 - 4 80 6 A 321390
4.40 (4.408) 12 - 4 80 6 A 321344 4.87 (4.878) 12 - 4 80 6 A 321391
4.41 (4.418) 12 - 4 80 6 A 321345 4.88 (4.888) 12 - 4 80 6 A 321392
4.42 (4.428) 12 - 4 80 6 A 321346 4.89 (4.898) 12 - 4 80 6 A 321393
4.43 (4.438) 12 - 4 80 6 A 321347 4.90 (4.908) 12 - 4 80 6 A 321394
4.44 (4.448) 12 - 4 80 6 A 321348 4.91 (4.918) 12 - 4 80 6 A 321395
4.45 (4.458) 12 - 4 80 6 A 321349 4.92 (4.928) 12 - 4 80 6 A 321396
4.46 (4.468) 12 - 4 80 6 A 321350 4.93 (4.938) 12 - 4 80 6 A 321397
4.47 (4.478) 12 - 4 80 6 A 321351 4.94 (4.948) 12 - 4 80 6 A 321398
4.48 (4.488) 12 - 4 80 6 A 321352 4.95 (4.958) 12 - 4 80 6 A 321399
4.49 (4.498) 12 - 4 80 6 A 321353 4.96 (4.968) 12 - 4 80 6 A 321400
4.50 (4.508) 12 - 4 80 6 A 321354 4.97 (4.978) 12 - 4 80 6 A 321401

14
