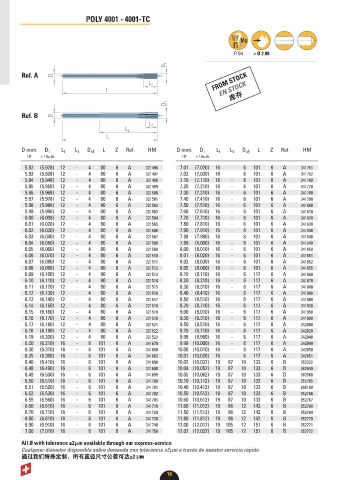

Page 18 - DC_SWISS(Catalogue_TM_ES-EN)
P. 18
POLY 4001 - 4001-TC
P. 64 > Ø 2.98
FROM STOCK
Ref. A
EN STOCK
库存
Ref. B
D nom. D L L D L Z Ref. HM D nom. D L L D L Z Ref. HM
2
1
1
1
h5
2
1
h5
H7 ± 1.5 m H7 ± 1.5 m
5.92 (5.928) 12 - 4 80 6 A 321496 7.01 (7.020) 16 - 6 101 6 A 341751
5.93 (5.938) 12 - 4 80 6 A 321497 7.02 (7.030) 16 - 6 101 6 A 341752
5.94 (5.948) 12 - 4 80 6 A 321498 7.10 (7.110) 16 - 6 101 6 A 341760
5.95 (5.958) 12 - 4 80 6 A 321499 7.20 (7.210) 16 - 6 101 6 A 341770
5.96 (5.968) 12 - 4 80 6 A 321500 7.30 (7.310) 16 - 6 101 6 A 341780
5.97 (5.978) 12 - 4 80 6 A 321501 7.40 (7.410) 16 - 6 101 6 A 341790
5.98 (5.988) 12 - 4 80 6 A 321502 7.50 (7.510) 16 - 6 101 6 A 341800
5.99 (5.998) 12 - 4 80 6 A 321503 7.60 (7.610) 16 - 6 101 6 A 341810
6.00 (6.008) 12 - 4 80 6 A 321504 7.70 (7.710) 16 - 6 101 6 A 341820
6.01 (6.020) 12 - 4 80 6 A 321505 7.80 (7.810) 16 - 6 101 6 A 341830
6.02 (6.030) 12 - 4 80 6 A 321506 7.90 (7.910) 16 - 6 101 6 A 341840
6.03 (6.040) 12 - 4 80 6 A 321507 7.98 (7.990) 16 - 6 101 6 A 341848
6.04 (6.050) 12 - 4 80 6 A 321508 7.99 (8.000) 16 - 6 101 6 A 341849
6.05 (6.060) 12 - 4 80 6 A 321509 8.00 (8.010) 16 - 6 101 6 A 341850
6.06 (6.070) 12 - 4 80 6 A 321510 8.01 (8.020) 16 - 6 101 6 A 341851
6.07 (6.080) 12 - 4 80 6 A 321511 8.02 (8.030) 16 - 6 101 6 A 341852
6.08 (6.090) 12 - 4 80 6 A 321512 8.05 (8.060) 16 - 6 101 6 A 341855
6.09 (6.100) 12 - 4 80 6 A 321513 8.10 (8.110) 16 - 6 117 6 A 341860
6.10 (6.110) 12 - 4 80 6 A 321514 8.20 (8.210) 16 - 6 117 6 A 341870
6.11 (6.120) 12 - 4 80 6 A 321515 8.30 (8.310) 16 - 6 117 6 A 341880
6.12 (6.130) 12 - 4 80 6 A 321516 8.40 (8.410) 16 - 6 117 6 A 341890
6.13 (6.140) 12 - 4 80 6 A 321517 8.50 (8.510) 16 - 6 117 6 A 341900
6.14 (6.150) 12 - 4 80 6 A 321518 8.70 (8.710) 16 - 6 117 6 A 341920
6.15 (6.160) 12 - 4 80 6 A 321519 9.00 (9.010) 16 - 6 117 6 A 341950
6.16 (6.170) 12 - 4 80 6 A 321520 9.30 (9.310) 16 - 6 117 6 A 341980
6.17 (6.180) 12 - 4 80 6 A 321521 9.50 (9.510) 16 - 6 117 6 A 342000
6.18 (6.190) 12 - 4 80 6 A 321522 9.70 (9.710) 16 - 6 117 6 A 342020
6.19 (6.200) 12 - 4 80 6 A 321523 9.98 (9.990) 16 - 6 117 6 A 342048
6.20 (6.210) 16 - 6 101 6 A 341670 9.99 (10.000) 16 - 6 117 6 A 342049
6.30 (6.310) 16 - 6 101 6 A 341680 10.00 (10.010) 16 - 6 117 6 A 342050
6.35 (6.360) 16 - 6 101 6 A 341685 10.01 (10.020) 16 - 6 117 6 A 342051
6.40 (6.410) 16 - 6 101 6 A 341690 10.02 (10.032) 19 87 10 133 6 B 952322
6.48 (6.490) 16 - 6 101 6 A 341698 10.04 (10.052) 19 87 10 133 6 B 962649
6.49 (6.500) 16 - 6 101 6 A 341699 10.05 (10.062) 19 87 10 133 6 B 962568
6.50 (6.510) 16 - 6 101 6 A 341700 10.10 (10.112) 19 87 10 133 6 B 952765
6.51 (6.520) 16 - 6 101 6 A 341701 10.40 (10.412) 19 87 10 133 6 B 968160
6.52 (6.530) 16 - 6 101 6 A 341702 10.50 (10.512) 19 87 10 133 6 B 952766
6.55 (6.560) 16 - 6 101 6 A 341705 10.60 (10.612) 19 87 10 133 6 B 952767
6.60 (6.610) 16 - 6 101 6 A 341710 11.00 (11.012) 19 96 12 142 6 B 952768
6.70 (6.710) 16 - 6 101 6 A 341720 11.50 (11.512) 19 96 12 142 6 B 952769
6.80 (6.810) 16 - 6 101 6 A 341730 11.80 (11.812) 19 96 12 142 6 B 952770
6.90 (6.910) 16 - 6 101 6 A 341740 12.00 (12.012) 19 105 12 151 6 B 952771
7.00 (7.010) 16 - 6 101 6 A 341750 12.02 (12.032) 19 105 12 151 6 B 952772
All Ø with tolerance ±2 m available through our express-service
Cualquier diámetro disponible sobre demanda con tolerancia ±2 m a través de nuestro servicio rápido
通过我们特殊定制，所有直径尺寸公差可达±2 μm
16
