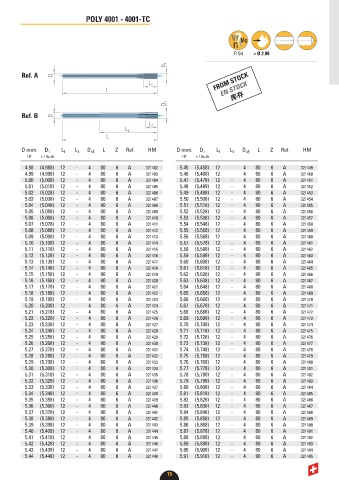

Page 17 - DC_SWISS(Catalogue_TM_ES-EN)

POLY 4001 - 4001-TC

P. 64 > Ø 2.98

FROM STOCK
Ref. A
EN STOCK
库存

Ref. B

D nom. D L L D L Z Ref. HM D nom. D L L D L Z Ref. HM
2
1
1
1
h5
2
1
h5
H7 ± 1.5 m H7 ± 1.5 m
4.98 (4.988) 12 - 4 80 6 A 321402 5.45 (5.458) 12 - 4 80 6 A 321449
4.99 (4.998) 12 - 4 80 6 A 321403 5.46 (5.468) 12 - 4 80 6 A 321450
5.00 (5.008) 12 - 4 80 6 A 321404 5.47 (5.478) 12 - 4 80 6 A 321451
5.01 (5.018) 12 - 4 80 6 A 321405 5.48 (5.488) 12 - 4 80 6 A 321452
5.02 (5.028) 12 - 4 80 6 A 321406 5.49 (5.498) 12 - 4 80 6 A 321453
5.03 (5.038) 12 - 4 80 6 A 321407 5.50 (5.508) 12 - 4 80 6 A 321454
5.04 (5.048) 12 - 4 80 6 A 321408 5.51 (5.518) 12 - 4 80 6 A 321455
5.05 (5.058) 12 - 4 80 6 A 321409 5.52 (5.528) 12 - 4 80 6 A 321456
5.06 (5.068) 12 - 4 80 6 A 321410 5.53 (5.538) 12 - 4 80 6 A 321457
5.07 (5.078) 12 - 4 80 6 A 321411 5.54 (5.548) 12 - 4 80 6 A 321458
5.08 (5.088) 12 - 4 80 6 A 321412 5.55 (5.558) 12 - 4 80 6 A 321459
5.09 (5.098) 12 - 4 80 6 A 321413 5.56 (5.568) 12 - 4 80 6 A 321460
5.10 (5.108) 12 - 4 80 6 A 321414 5.57 (5.578) 12 - 4 80 6 A 321461
5.11 (5.118) 12 - 4 80 6 A 321415 5.58 (5.588) 12 - 4 80 6 A 321462
5.12 (5.128) 12 - 4 80 6 A 321416 5.59 (5.598) 12 - 4 80 6 A 321463
5.13 (5.138) 12 - 4 80 6 A 321417 5.60 (5.608) 12 - 4 80 6 A 321464
5.14 (5.148) 12 - 4 80 6 A 321418 5.61 (5.618) 12 - 4 80 6 A 321465
5.15 (5.158) 12 - 4 80 6 A 321419 5.62 (5.628) 12 - 4 80 6 A 321466
5.16 (5.168) 12 - 4 80 6 A 321420 5.63 (5.638) 12 - 4 80 6 A 321467
5.17 (5.178) 12 - 4 80 6 A 321421 5.64 (5.648) 12 - 4 80 6 A 321468
5.18 (5.188) 12 - 4 80 6 A 321422 5.65 (5.658) 12 - 4 80 6 A 321469
5.19 (5.198) 12 - 4 80 6 A 321423 5.66 (5.668) 12 - 4 80 6 A 321470
5.20 (5.208) 12 - 4 80 6 A 321424 5.67 (5.678) 12 - 4 80 6 A 321471
5.21 (5.218) 12 - 4 80 6 A 321425 5.68 (5.688) 12 - 4 80 6 A 321472
5.22 (5.228) 12 - 4 80 6 A 321426 5.69 (5.698) 12 - 4 80 6 A 321473
5.23 (5.238) 12 - 4 80 6 A 321427 5.70 (5.708) 12 - 4 80 6 A 321474
5.24 (5.248) 12 - 4 80 6 A 321428 5.71 (5.718) 12 - 4 80 6 A 321475
5.25 (5.258) 12 - 4 80 6 A 321429 5.72 (5.728) 12 - 4 80 6 A 321476
5.26 (5.268) 12 - 4 80 6 A 321430 5.73 (5.738) 12 - 4 80 6 A 321477
5.27 (5.278) 12 - 4 80 6 A 321431 5.74 (5.748) 12 - 4 80 6 A 321478
5.28 (5.288) 12 - 4 80 6 A 321432 5.75 (5.758) 12 - 4 80 6 A 321479
5.29 (5.298) 12 - 4 80 6 A 321433 5.76 (5.768) 12 - 4 80 6 A 321480
5.30 (5.308) 12 - 4 80 6 A 321434 5.77 (5.778) 12 - 4 80 6 A 321481
5.31 (5.318) 12 - 4 80 6 A 321435 5.78 (5.788) 12 - 4 80 6 A 321482
5.32 (5.328) 12 - 4 80 6 A 321436 5.79 (5.798) 12 - 4 80 6 A 321483
5.33 (5.338) 12 - 4 80 6 A 321437 5.80 (5.808) 12 - 4 80 6 A 321484
5.34 (5.348) 12 - 4 80 6 A 321438 5.81 (5.818) 12 - 4 80 6 A 321485
5.35 (5.358) 12 - 4 80 6 A 321439 5.82 (5.828) 12 - 4 80 6 A 321486
5.36 (5.368) 12 - 4 80 6 A 321440 5.83 (5.838) 12 - 4 80 6 A 321487
5.37 (5.378) 12 - 4 80 6 A 321441 5.84 (5.848) 12 - 4 80 6 A 321488
5.38 (5.388) 12 - 4 80 6 A 321442 5.85 (5.858) 12 - 4 80 6 A 321489
5.39 (5.398) 12 - 4 80 6 A 321443 5.86 (5.868) 12 - 4 80 6 A 321490
5.40 (5.408) 12 - 4 80 6 A 321444 5.87 (5.878) 12 - 4 80 6 A 321491
5.41 (5.418) 12 - 4 80 6 A 321445 5.88 (5.888) 12 - 4 80 6 A 321492
5.42 (5.428) 12 - 4 80 6 A 321446 5.89 (5.898) 12 - 4 80 6 A 321493
5.43 (5.438) 12 - 4 80 6 A 321447 5.90 (5.908) 12 - 4 80 6 A 321494
5.44 (5.448) 12 - 4 80 6 A 321448 5.91 (5.918) 12 - 4 80 6 A 321495

15
