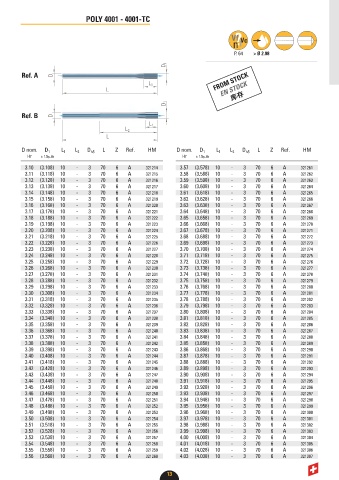

Page 15 - DC_SWISS(Catalogue_TM_ES-EN)

POLY 4001 - 4001-TC

P. 64 > Ø 2.98

FROM STOCK
Ref. A
EN STOCK
库存

Ref. B

D nom. D L L D L Z Ref. HM D nom. D L L D L Z Ref. HM
2
1
1
1
h5
2
1
h5
H7 ± 1.5 m H7 ± 1.5 m
3.10 (3.108) 10 - 3 70 6 A 321214 3.57 (3.578) 10 - 3 70 6 A 321261
3.11 (3.118) 10 - 3 70 6 A 321215 3.58 (3.588) 10 - 3 70 6 A 321262
3.12 (3.128) 10 - 3 70 6 A 321216 3.59 (3.598) 10 - 3 70 6 A 321263
3.13 (3.138) 10 - 3 70 6 A 321217 3.60 (3.608) 10 - 3 70 6 A 321264
3.14 (3.148) 10 - 3 70 6 A 321218 3.61 (3.618) 10 - 3 70 6 A 321265
3.15 (3.158) 10 - 3 70 6 A 321219 3.62 (3.628) 10 - 3 70 6 A 321266
3.16 (3.168) 10 - 3 70 6 A 321220 3.63 (3.638) 10 - 3 70 6 A 321267
3.17 (3.178) 10 - 3 70 6 A 321221 3.64 (3.648) 10 - 3 70 6 A 321268
3.18 (3.188) 10 - 3 70 6 A 321222 3.65 (3.658) 10 - 3 70 6 A 321269
3.19 (3.198) 10 - 3 70 6 A 321223 3.66 (3.668) 10 - 3 70 6 A 321270
3.20 (3.208) 10 - 3 70 6 A 321224 3.67 (3.678) 10 - 3 70 6 A 321271
3.21 (3.218) 10 - 3 70 6 A 321225 3.68 (3.688) 10 - 3 70 6 A 321272
3.22 (3.228) 10 - 3 70 6 A 321226 3.69 (3.698) 10 - 3 70 6 A 321273
3.23 (3.238) 10 - 3 70 6 A 321227 3.70 (3.708) 10 - 3 70 6 A 321274
3.24 (3.248) 10 - 3 70 6 A 321228 3.71 (3.718) 10 - 3 70 6 A 321275
3.25 (3.258) 10 - 3 70 6 A 321229 3.72 (3.728) 10 - 3 70 6 A 321276
3.26 (3.268) 10 - 3 70 6 A 321230 3.73 (3.738) 10 - 3 70 6 A 321277
3.27 (3.278) 10 - 3 70 6 A 321231 3.74 (3.748) 10 - 3 70 6 A 321278
3.28 (3.288) 10 - 3 70 6 A 321232 3.75 (3.758) 10 - 3 70 6 A 321279
3.29 (3.298) 10 - 3 70 6 A 321233 3.76 (3.768) 10 - 3 70 6 A 321280
3.30 (3.308) 10 - 3 70 6 A 321234 3.77 (3.778) 10 - 3 70 6 A 321281
3.31 (3.318) 10 - 3 70 6 A 321235 3.78 (3.788) 10 - 3 70 6 A 321282
3.32 (3.328) 10 - 3 70 6 A 321236 3.79 (3.798) 10 - 3 70 6 A 321283
3.33 (3.338) 10 - 3 70 6 A 321237 3.80 (3.808) 10 - 3 70 6 A 321284
3.34 (3.348) 10 - 3 70 6 A 321238 3.81 (3.818) 10 - 3 70 6 A 321285
3.35 (3.358) 10 - 3 70 6 A 321239 3.82 (3.828) 10 - 3 70 6 A 321286
3.36 (3.368) 10 - 3 70 6 A 321240 3.83 (3.838) 10 - 3 70 6 A 321287
3.37 (3.378) 10 - 3 70 6 A 321241 3.84 (3.848) 10 - 3 70 6 A 321288
3.38 (3.388) 10 - 3 70 6 A 321242 3.85 (3.858) 10 - 3 70 6 A 321289
3.39 (3.398) 10 - 3 70 6 A 321243 3.86 (3.868) 10 - 3 70 6 A 321290
3.40 (3.408) 10 - 3 70 6 A 321244 3.87 (3.878) 10 - 3 70 6 A 321291
3.41 (3.418) 10 - 3 70 6 A 321245 3.88 (3.888) 10 - 3 70 6 A 321292
3.42 (3.428) 10 - 3 70 6 A 321246 3.89 (3.898) 10 - 3 70 6 A 321293
3.43 (3.438) 10 - 3 70 6 A 321247 3.90 (3.908) 10 - 3 70 6 A 321294
3.44 (3.448) 10 - 3 70 6 A 321248 3.91 (3.918) 10 - 3 70 6 A 321295
3.45 (3.458) 10 - 3 70 6 A 321249 3.92 (3.928) 10 - 3 70 6 A 321296
3.46 (3.468) 10 - 3 70 6 A 321250 3.93 (3.938) 10 - 3 70 6 A 321297
3.47 (3.478) 10 - 3 70 6 A 321251 3.94 (3.948) 10 - 3 70 6 A 321298
3.48 (3.488) 10 - 3 70 6 A 321252 3.95 (3.958) 10 - 3 70 6 A 321299
3.49 (3.498) 10 - 3 70 6 A 321253 3.96 (3.968) 10 - 3 70 6 A 321300
3.50 (3.508) 10 - 3 70 6 A 321254 3.97 (3.978) 10 - 3 70 6 A 321301
3.51 (3.518) 10 - 3 70 6 A 321255 3.98 (3.988) 10 - 3 70 6 A 321302
3.52 (3.528) 10 - 3 70 6 A 321256 3.99 (3.998) 10 - 3 70 6 A 321303
3.53 (3.538) 10 - 3 70 6 A 321257 4.00 (4.008) 10 - 3 70 6 A 321304
3.54 (3.548) 10 - 3 70 6 A 321258 4.01 (4.018) 10 - 3 70 6 A 321305
3.55 (3.558) 10 - 3 70 6 A 321259 4.02 (4.028) 10 - 3 70 6 A 321306
3.56 (3.568) 10 - 3 70 6 A 321260 4.03 (4.038) 10 - 3 70 6 A 321307

13
