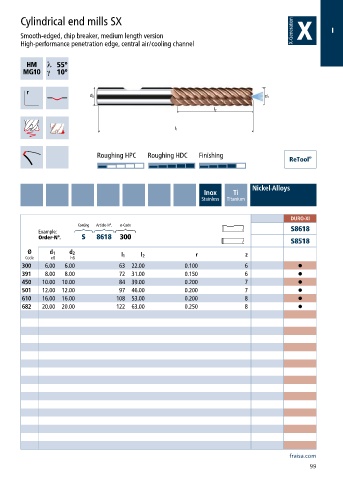

Page 101 - 21-036 APPLITEC catalogue.indb
P. 101
Cylindrical end mills SX
I
Smooth-edged, chip breaker, medium length version
High-performance penetration edge, central air/cooling channel
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
Nickel-Alloys
Inox Ti
Stainless Titanium
DURO-XI
Coating Article-N°. ø-Code
Example: S8618
Order-N°. S 8618 300
S8518
Ø d 1 d 2
Code e8 h6 l 1 l 2 r z
300 6.00 6.00 63 22.00 0.100 6 •
391 8.00 8.00 72 31.00 0.150 6 •
450 10.00 10.00 84 39.00 0.200 7 •
501 12.00 12.00 97 46.00 0.200 7 •
610 16.00 16.00 108 53.00 0.200 8 •
682 20.00 20.00 122 63.00 0.250 8 •
fraisa.com
99
