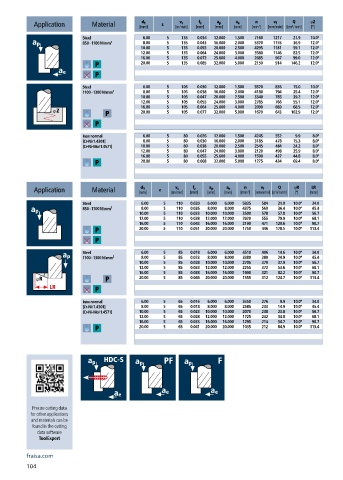

Page 106 - 21-036 APPLITEC catalogue.indb

a e
v c
v f
d 1
n
f z
a p
Q
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 6.00 5 135 0.034 12.000 1.500 7160 1217 21.9 10.0°
850 - 1100 N/mm² 8.00 5 135 0.043 16.000 2.000 5370 1155 36.9 12.0°
10.00 5 135 0.055 20.000 2.500 4295 1181 59.1 12.0°
12.00 5 135 0.064 24.000 3.000 3580 1146 82.5 12.0°
16.00 5 135 0.072 25.600 4.000 2685 967 99.0 12.0°
20.00 5 135 0.085 32.000 5.000 2150 914 146.2 12.0°
Steel 6.00 5 105 0.030 12.000 1.500 5570 836 15.0 10.0°
1100 - 1300 N/mm² 8.00 5 105 0.038 16.000 2.000 4180 794 25.4 12.0°
10.00 5 105 0.047 20.000 2.500 3340 785 39.2 12.0°
12.00 5 105 0.055 24.000 3.000 2785 766 55.1 12.0°
16.00 5 105 0.064 25.600 4.000 2090 669 68.5 12.0°
20.00 5 105 0.077 32.000 5.000 1670 643 102.9 12.0°
Inox normal 6.00 5 80 0.026 12.000 1.500 4245 552 9.9 8.0°
[Cr-Ni/1.4301] 8.00 5 80 0.030 16.000 2.000 3185 478 15.3 8.0°
[Cr-Ni-Mo/1.4571] 10.00 5 80 0.038 20.000 2.500 2545 484 24.2 8.0°
12.00 5 80 0.047 24.000 3.000 2120 498 35.9 8.0°
16.00 5 80 0.055 25.600 4.000 1590 437 44.8 8.0°
20.00 5 80 0.068 32.000 5.000 1275 434 69.4 8.0°
d 1
v f
LR
f z
v c
Q
n
a p
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
3
[°]
-1
Steel 6.00 5 110 0.020 6.000 6.000 5835 584 21.0 10.0° 34.0
850 - 1100 N/mm² 8.00 5 110 0.026 8.000 8.000 4375 569 36.4 10.0° 45.4
10.00 5 110 0.033 10.000 10.000 3500 578 57.8 10.0° 56.7
12.00 5 110 0.038 12.000 12.000 2920 555 79.9 10.0° 68.1
16.00 5 110 0.043 16.000 16.000 2190 471 120.6 10.0° 90.7
20.00 5 110 0.051 20.000 20.000 1750 446 178.5 10.0° 113.4
Steel 6.00 5 85 0.018 6.000 6.000 4510 406 14.6 10.0° 34.0
1100 - 1300 N/mm² 8.00 5 85 0.023 8.000 8.000 3380 389 24.9 10.0° 45.4
10.00 5 85 0.028 10.000 10.000 2705 379 37.9 10.0° 56.7
12.00 5 85 0.033 12.000 12.000 2255 372 53.6 10.0° 68.1
16.00 5 85 0.038 16.000 16.000 1690 321 82.2 10.0° 90.7
20.00 5 85 0.046 20.000 20.000 1355 312 124.7 10.0° 113.4
Inox normal 6.00 5 65 0.016 6.000 6.000 3450 276 9.9 10.0° 34.0
[Cr-Ni/1.4301] 8.00 5 65 0.018 8.000 8.000 2585 233 14.9 10.0° 45.4
[Cr-Ni-Mo/1.4571] 10.00 5 65 0.023 10.000 10.000 2070 238 23.8 10.0° 56.7
12.00 5 65 0.028 12.000 12.000 1725 242 34.8 10.0° 68.1
16.00 5 65 0.033 16.000 16.000 1295 214 54.7 10.0° 90.7
20.00 5 65 0.041 20.000 20.000 1035 212 84.9 10.0° 113.4
