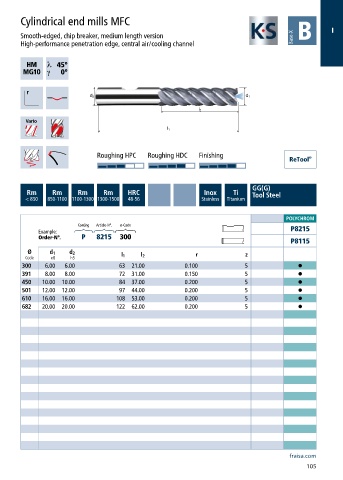

Cylindrical end mills MFC
I
Smooth-edged, chip breaker, medium length version
High-performance penetration edge, central air/cooling channel

h ƍ
a ƍ

Roughing HPC Roughing HDC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8215
Order-N°. P 8215 300
P8115
Ø d 1 d 2
Code e8 h5 l 1 l 2 r z
300 6.00 6.00 63 21.00 0.100 5 •
391 8.00 8.00 72 31.00 0.150 5 •
450 10.00 10.00 84 37.00 0.200 5 •
501 12.00 12.00 97 44.00 0.200 5 •
610 16.00 16.00 108 53.00 0.200 5 •
682 20.00 20.00 122 62.00 0.200 5 •
