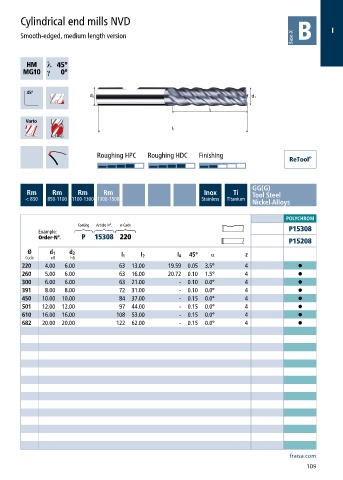

Cylindrical end mills NVD
I
Smooth-edged, medium length version
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P15308
Order-N°. P 15308 220
P15208
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 45° z
220 4.00 6.00 63 13.00 19.59 0.05 3.5° 4 •
260 5.00 6.00 63 16.00 20.72 0.10 1.5° 4 •
300 6.00 6.00 63 21.00 - 0.10 0.0° 4 •
391 8.00 8.00 72 31.00 - 0.10 0.0° 4 •
450 10.00 10.00 84 37.00 - 0.15 0.0° 4 •
501 12.00 12.00 97 44.00 - 0.15 0.0° 4 •
610 16.00 16.00 108 53.00 - 0.15 0.0° 4 •
682 20.00 20.00 122 62.00 - 0.15 0.0° 4 •
