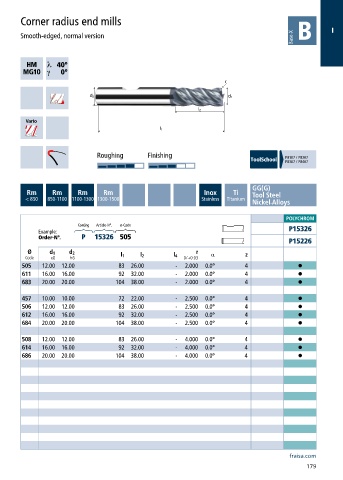

Corner radius end mills
I
Smooth-edged, normal version
h ƍ
a ƍ
Roughing Finishing P8107 / P8207
P8307 / P8407
GG(G)
Rm Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P15326
Order-N°. P 15326 505
P15226
Ø d 1 d 2 r α
Code e8 h6 l 1 l 2 l 4 0/+0.03 z
505 12.00 12.00 83 26.00 - 2.000 0.0° 4 •
611 16.00 16.00 92 32.00 - 2.000 0.0° 4 •
683 20.00 20.00 104 38.00 - 2.000 0.0° 4 •
457 10.00 10.00 72 22.00 - 2.500 0.0° 4 •
506 12.00 12.00 83 26.00 - 2.500 0.0° 4 •
612 16.00 16.00 92 32.00 - 2.500 0.0° 4 •
684 20.00 20.00 104 38.00 - 2.500 0.0° 4 •
508 12.00 12.00 83 26.00 - 4.000 0.0° 4 •
614 16.00 16.00 92 32.00 - 4.000 0.0° 4 •
686 20.00 20.00 104 38.00 - 4.000 0.0° 4 •
