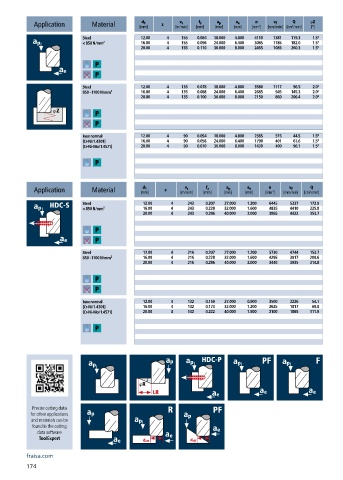

Page 176 - 21-036 APPLITEC catalogue.indb

v f
d 1
n
a e
a p
Q
v c
f z
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 12.00 4 155 0.084 18.000 4.800 4110 1381 119.3 1.5°
< 850 N/mm² 16.00 4 155 0.096 24.000 6.400 3085 1185 182.0 1.5°
20.00 4 155 0.110 30.000 8.000 2465 1085 260.3 1.5°
Steel 12.00 4 135 0.078 18.000 4.800 3580 1117 96.5 2.0°
850 - 1100 N/mm² 16.00 4 135 0.088 24.000 6.400 2685 945 145.2 2.0°
20.00 4 135 0.100 30.000 8.000 2150 860 206.4 2.0°

Inox normal 12.00 4 90 0.054 18.000 4.800 2385 515 44.5 1.5°
[Cr-Ni/1.4301] 16.00 4 90 0.056 24.000 6.400 1790 401 61.6 1.5°
[Cr-Ni-Mo/1.4571] 20.00 4 90 0.070 30.000 8.000 1430 400 96.1 1.5°

v f
Q
v c
d 1
n
a p
a e
f z
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Steel 12.00 4 243 0.207 27.000 1.200 6445 5337 172.9
< 850 N/mm² 16.00 4 243 0.228 32.000 1.600 4835 4410 225.8
20.00 4 243 0.286 40.000 2.000 3865 4422 353.7
Steel 12.00 4 216 0.207 27.000 1.200 5730 4744 153.7
850 - 1100 N/mm² 16.00 4 216 0.228 32.000 1.600 4295 3917 200.6
20.00 4 216 0.286 40.000 2.000 3440 3935 314.8

Inox normal 12.00 4 132 0.159 27.000 0.900 3500 2226 54.1
[Cr-Ni/1.4301] 16.00 4 132 0.173 32.000 1.200 2625 1817 69.8
[Cr-Ni-Mo/1.4571] 20.00 4 132 0.222 40.000 1.500 2100 1865 111.9

Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert

fraisa.com
174
