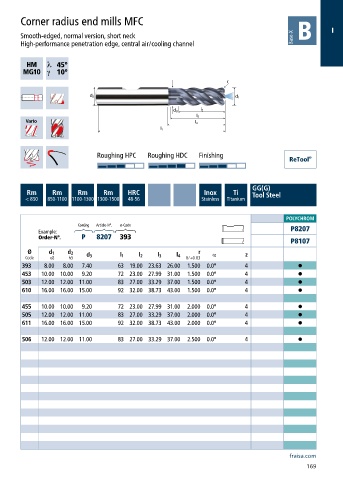

Corner radius end mills MFC
I
Smooth-edged, normal version, short neck
High-performance penetration edge, central air/cooling channel
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P8207
Order-N°. P 8207 393
P8107
Ø d 1 d 2 r α
Code e8 h5 d 3 l 1 l 2 l 3 l 4 0/+0.03 z
393 8.00 8.00 7.40 63 19.00 23.63 26.00 1.500 0.0° 4 •
453 10.00 10.00 9.20 72 23.00 27.99 31.00 1.500 0.0° 4 •
503 12.00 12.00 11.00 83 27.00 33.29 37.00 1.500 0.0° 4 •
610 16.00 16.00 15.00 92 32.00 38.73 43.00 1.500 0.0° 4 •
455 10.00 10.00 9.20 72 23.00 27.99 31.00 2.000 0.0° 4 •
505 12.00 12.00 11.00 83 27.00 33.29 37.00 2.000 0.0° 4 •
611 16.00 16.00 15.00 92 32.00 38.73 43.00 2.000 0.0° 4 •
506 12.00 12.00 11.00 83 27.00 33.29 37.00 2.500 0.0° 4 •
