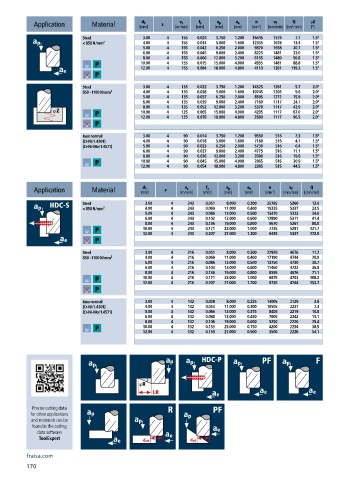

Page 172 - 21-036 APPLITEC catalogue.indb

a e
n
a p
f z
Q
d 1
v f
v c
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 3.00 4 155 0.024 3.750 1.200 16445 1579 7.1 1.5°
< 850 N/mm² 4.00 4 155 0.034 5.000 1.600 12335 1678 13.4 1.5°
5.00 4 155 0.042 6.250 2.000 9870 1658 20.7 1.5°
6.00 4 155 0.045 9.000 2.400 8225 1481 32.0 1.5°
8.00 4 155 0.060 12.000 3.200 6165 1480 56.8 1.5°
10.00 4 155 0.075 15.000 4.000 4935 1481 88.8 1.5°
12.00 4 155 0.084 18.000 4.800 4110 1381 119.3 1.5°
Steel 3.00 4 135 0.022 3.750 1.200 14325 1261 5.7 2.0°
850 - 1100 N/mm² 4.00 4 135 0.028 5.000 1.600 10745 1203 9.6 2.0°
5.00 4 135 0.037 6.250 2.000 8595 1272 15.9 2.0°
6.00 4 135 0.039 9.000 2.400 7160 1117 24.1 2.0°
8.00 4 135 0.052 12.000 3.200 5370 1117 42.9 2.0°
10.00 4 135 0.065 15.000 4.000 4295 1117 67.0 2.0°
12.00 4 135 0.078 18.000 4.800 3580 1117 96.5 2.0°
Inox normal 3.00 4 90 0.014 3.750 1.200 9550 516 2.3 1.5°
[Cr-Ni/1.4301] 4.00 4 90 0.018 5.000 1.600 7160 516 4.1 1.5°
[Cr-Ni-Mo/1.4571] 5.00 4 90 0.023 6.250 2.000 5730 516 6.4 1.5°
6.00 4 90 0.027 9.000 2.400 4775 516 11.1 1.5°
8.00 4 90 0.036 12.000 3.200 3580 516 19.8 1.5°
10.00 4 90 0.045 15.000 4.000 2865 516 30.9 1.5°
12.00 4 90 0.054 18.000 4.800 2385 515 44.5 1.5°
v f
a p
a e
n
Q
f z
v c
d 1
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min]
3
Steel 3.00 4 243 0.051 8.000 0.300 25785 5260 12.6
< 850 N/mm² 4.00 4 243 0.069 11.000 0.400 19335 5337 23.5
5.00 4 243 0.086 13.000 0.500 15470 5322 34.6
6.00 4 243 0.103 13.000 0.600 12890 5311 41.4
8.00 4 243 0.136 19.000 0.800 9670 5261 80.0
10.00 4 243 0.171 23.000 1.000 7735 5291 121.7
12.00 4 243 0.207 27.000 1.200 6445 5337 172.9
Steel 3.00 4 216 0.051 8.000 0.300 22920 4676 11.2
850 - 1100 N/mm² 4.00 4 216 0.069 11.000 0.400 17190 4744 20.9
5.00 4 216 0.086 13.000 0.500 13750 4730 30.7
6.00 4 216 0.103 13.000 0.600 11460 4722 36.8
8.00 4 216 0.136 19.000 0.800 8595 4676 71.1
10.00 4 216 0.171 23.000 1.000 6875 4703 108.2
12.00 4 216 0.207 27.000 1.200 5730 4744 153.7
Inox normal 3.00 4 132 0.038 8.000 0.225 14005 2129 3.8
[Cr-Ni/1.4301] 4.00 4 132 0.053 11.000 0.300 10505 2227 7.3
[Cr-Ni-Mo/1.4571] 5.00 4 132 0.066 13.000 0.375 8405 2219 10.8
6.00 4 132 0.080 13.000 0.450 7005 2242 13.1
8.00 4 132 0.106 19.000 0.600 5250 2226 25.4
10.00 4 132 0.133 23.000 0.750 4200 2234 38.5
12.00 4 132 0.159 27.000 0.900 3500 2226 54.1

Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert

fraisa.com
