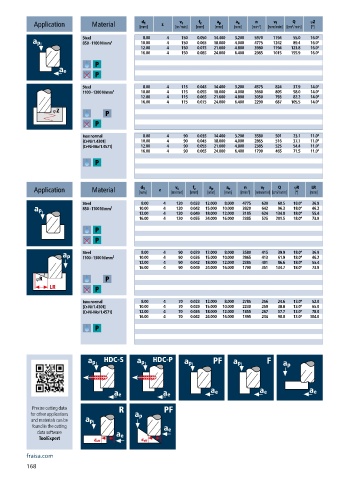

Page 170 - 21-036 APPLITEC catalogue.indb

v f
f z
n
v c
d 1
a p
Q
a e
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] -1 [mm/min] [cm /min] jZ
3
[°]
Steel 8.00 4 150 0.050 14.400 3.200 5970 1194 55.0 16.0°
850 - 1100 N/mm² 10.00 4 150 0.065 18.000 4.000 4775 1242 89.4 16.0°
12.00 4 150 0.075 21.600 4.800 3980 1194 123.8 16.0°
16.00 4 150 0.085 24.000 6.400 2985 1015 155.9 16.0°
Steel 8.00 4 115 0.045 14.400 3.200 4575 824 37.9 14.0°
1100 - 1300 N/mm² 10.00 4 115 0.055 18.000 4.000 3660 805 58.0 14.0°
12.00 4 115 0.065 21.600 4.800 3050 793 82.2 14.0°
16.00 4 115 0.075 24.000 6.400 2290 687 105.5 14.0°
Inox normal 8.00 4 90 0.035 14.400 3.200 3580 501 23.1 11.0°
[Cr-Ni/1.4301] 10.00 4 90 0.045 18.000 4.000 2865 516 37.1 11.0°
[Cr-Ni-Mo/1.4571] 12.00 4 90 0.055 21.600 4.800 2385 525 54.4 11.0°
16.00 4 90 0.065 24.000 6.400 1790 465 71.5 11.0°

d 1
a e
a p
v c
f z
v f
Q
n
LR
Application Material [mm] z [m/min] [mm] [mm] [mm] [min ] [mm/min] [cm /min] jR [mm]
3
[°]
-1
Steel 8.00 4 120 0.033 12.000 8.000 4775 630 60.5 18.0° 36.9
850 - 1100 N/mm² 10.00 4 120 0.042 15.000 10.000 3820 642 96.3 18.0° 46.2
12.00 4 120 0.049 18.000 12.000 3185 624 134.8 18.0° 55.4
16.00 4 120 0.055 24.000 16.000 2385 525 201.5 18.0° 73.9
Steel 8.00 4 90 0.029 12.000 8.000 3580 415 39.9 18.0° 36.9
1100 - 1300 N/mm² 10.00 4 90 0.036 15.000 10.000 2865 413 61.9 18.0° 46.2
12.00 4 90 0.042 18.000 12.000 2385 401 86.6 18.0° 55.4
16.00 4 90 0.049 24.000 16.000 1790 351 134.7 18.0° 73.9
Inox normal 8.00 4 70 0.023 12.000 8.000 2785 256 24.6 13.0° 52.0
[Cr-Ni/1.4301] 10.00 4 70 0.029 15.000 10.000 2230 259 38.8 13.0° 65.0
[Cr-Ni-Mo/1.4571] 12.00 4 70 0.036 18.000 12.000 1855 267 57.7 13.0° 78.0
16.00 4 70 0.042 24.000 16.000 1395 234 90.0 13.0° 104.0

Precise cutting data
for other applications
and materials can be
found in the cutting
data software
ToolExpert

fraisa.com
168
