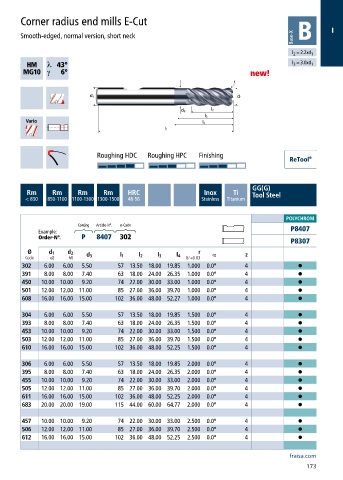

Page 175 - 21-036 APPLITEC catalogue.indb

Corner radius end mills E-Cut
I
Smooth-edged, normal version, short neck

l = 2.2xd 1
2
h ƍ l = 3.0xd 1
3
a ƍ new!

Roughing HDC Roughing HPC Finishing

GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium

POLYCHROM
Coating Article-N°. ø-Code
Example: P8407
Order-N°. P 8407 302
P8307
Ø d 1 d 2 r
new d 3 l 1 l 2 l 3 l 4 α z
Code e8 h6 0/+0.03
new 302 6.00 6.00 5.50 57 13.50 18.00 19.85 1.000 0.0° 4 •
new 391 8.00 8.00 7.40 63 18.00 24.00 26.35 1.000 0.0° 4 •
new 450 10.00 10.00 9.20 74 22.00 30.00 33.00 1.000 0.0° 4 •
new 501 12.00 12.00 11.00 85 27.00 36.00 39.70 1.000 0.0° 4 •
new 608 16.00 16.00 15.00 102 36.00 48.00 52.27 1.000 0.0° 4 •

new 304 6.00 6.00 5.50 57 13.50 18.00 19.85 1.500 0.0° 4 •
new 393 8.00 8.00 7.40 63 18.00 24.00 26.35 1.500 0.0° 4 •
new 453 10.00 10.00 9.20 74 22.00 30.00 33.00 1.500 0.0° 4 •
new 503 12.00 12.00 11.00 85 27.00 36.00 39.70 1.500 0.0° 4 •
new 610 16.00 16.00 15.00 102 36.00 48.00 52.25 1.500 0.0° 4 •
new 306 6.00 6.00 5.50 57 13.50 18.00 19.85 2.000 0.0° 4 •
new 395 8.00 8.00 7.40 63 18.00 24.00 26.35 2.000 0.0° 4 •
new 455 10.00 10.00 9.20 74 22.00 30.00 33.00 2.000 0.0° 4 •
new 505 12.00 12.00 11.00 85 27.00 36.00 39.70 2.000 0.0° 4 •
new 611 16.00 16.00 15.00 102 36.00 48.00 52.25 2.000 0.0° 4 •
new 683 20.00 20.00 19.00 115 44.00 60.00 64.77 2.000 0.0° 4 •
new 457 10.00 10.00 9.20 74 22.00 30.00 33.00 2.500 0.0° 4 •
new 506 12.00 12.00 11.00 85 27.00 36.00 39.70 2.500 0.0° 4 •
new 612 16.00 16.00 15.00 102 36.00 48.00 52.25 2.500 0.0° 4 •
