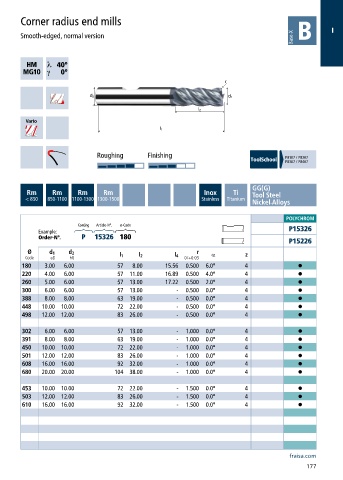

Corner radius end mills
I
Smooth-edged, normal version
h ƍ
a ƍ
Roughing Finishing P8107 / P8207
P8307 / P8407
GG(G)
Rm Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P15326
Order-N°. P 15326 180
P15226
Ø d 1 d 2 r α
Code e8 h6 l 1 l 2 l 4 0/+0.03 z
180 3.00 6.00 57 8.00 15.56 0.500 6.0° 4 •
220 4.00 6.00 57 11.00 16.89 0.500 4.0° 4 •
260 5.00 6.00 57 13.00 17.22 0.500 2.0° 4 •
300 6.00 6.00 57 13.00 - 0.500 0.0° 4 •
388 8.00 8.00 63 19.00 - 0.500 0.0° 4 •
448 10.00 10.00 72 22.00 - 0.500 0.0° 4 •
498 12.00 12.00 83 26.00 - 0.500 0.0° 4 •
302 6.00 6.00 57 13.00 - 1.000 0.0° 4 •
391 8.00 8.00 63 19.00 - 1.000 0.0° 4 •
450 10.00 10.00 72 22.00 - 1.000 0.0° 4 •
501 12.00 12.00 83 26.00 - 1.000 0.0° 4 •
608 16.00 16.00 92 32.00 - 1.000 0.0° 4 •
680 20.00 20.00 104 38.00 - 1.000 0.0° 4 •
453 10.00 10.00 72 22.00 - 1.500 0.0° 4 •
503 12.00 12.00 83 26.00 - 1.500 0.0° 4 •
610 16.00 16.00 92 32.00 - 1.500 0.0° 4 •
fraisa.com
