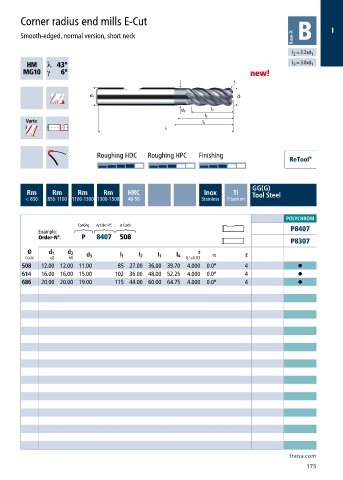

Corner radius end mills E-Cut
I
Smooth-edged, normal version, short neck
l = 2.2xd 1
2
h ƍ l = 3.0xd 1
3
a ƍ new!
Roughing HDC Roughing HPC Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P8407
Order-N°. P 8407 508
P8307
Ø d 1 d 2 r
new d 3 l 1 l 2 l 3 l 4 α z
Code e8 h6 0/+0.03
new 508 12.00 12.00 11.00 85 27.00 36.00 39.70 4.000 0.0° 4 •
new 614 16.00 16.00 15.00 102 36.00 48.00 52.25 4.000 0.0° 4 •
new 686 20.00 20.00 19.00 115 44.00 60.00 64.75 4.000 0.0° 4 •
